Golledge 4-pad SM crystal package

GSX-2

High Frequency Miniature SM Crystal

  • Frequencies up to 100MHz
  • Tight specifications available
  • Metal lid can be grounded to minimise EMI
  • Low height for maximum space saving
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
Temperature stability
1
Operating temperature range
1
2
Circuit condition
D
Oscillation mode
F
3
5
Quantity / Special Request

Please specify the quantity you require below.

The GSX-2 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-2 is available at high frequencies from 8.0 ~ 100MHz and features a miniature package measuring 7.5 x 5.0 x 1.0mm.

Offering a choice of operating temperature ranges, temperature stabilities, and circuit conditions, the GSX-2 features fundamental mode up to 36.0Mhz, and 3rd overtone or 5th overtone oscillation mode above this frequency.

This product is no longer recommended for new designs with the GSX-751 offering a more competitive alternative with only marginally increased package height.

Specifications
Frequency range 8.0 ~ 100.0MHz
Dimensions 7.5 x 5.0 x 1.1mm
Static capacitance (C0) 7pF max
Equivalent series resistance 60Ω max (8.0~ 9.9MHz)
50Ω max (10.0 ~ 15.9MHz)
40Ω max (16.0 ~ 32.0MHz, fund)
60Ω max (28.0 ~ 84.0MHz, 3rd OT)
80Ω max (84.1 ~ 100MHz, 5th OT)
Ageing ±5ppm max first year
Test drive level 100µW
Soldering condition 260°C, 10 sec x2 max ..

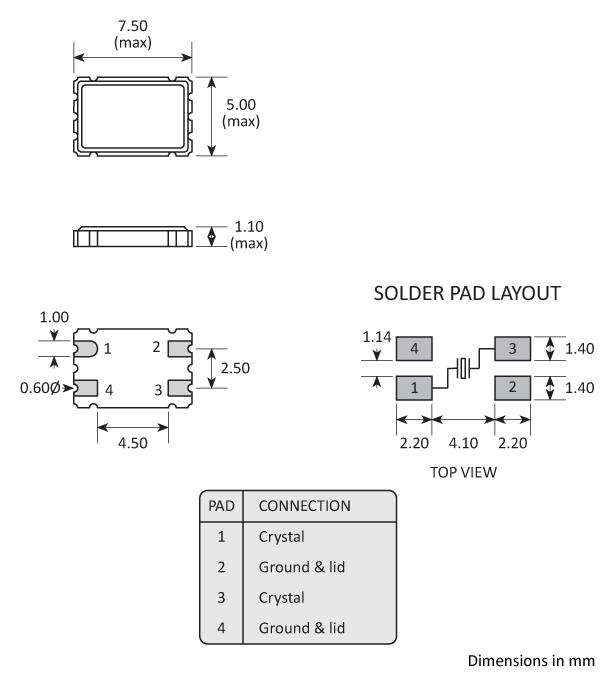

Package Drawing
Package footprint and pad configuration drawing for the Golledge 7x5 4-pad Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-2 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications

A:250 B:16 C:7.9 D:5.4 E:8 F:1.7 G:80 H:25

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
