Golledge 4-pad SM crystal package

GSX-758

High Frequency Fundamental 7.5 x 5.0mm SM Crystal

  • Fundamental mode up to 315MHz
  • Plasma etched inverted mesa process
  • Wide pulling range (fundamental mode)
  • Small & medium volumes also available
  • Custom frequencies available on short leadtimes
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
2
5
Temperature stability
2
5
Operating temperature range
2
4
Circuit condition
D
E
F
J
Oscillation mode
F
Quantity / Special Request

Please specify the quantity you require below.

The GSX-758 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-758 uses plasma etched inverted mesa technology to reach frequencies of 50.0 ~ 315MHz in fundamental mode, meaning this crystal can enable a wide pulling range or low phase noise dependent on external circuit design.

The GSX-758 is available in a range of calibration tolerance and temperature stability options and circuit condition is also configurable making this component versatile enough for use in a wide range of applications.

Specifications
Frequency range 50.0 ~ 315MHz
Dimensions 7.5 x 5.0 x 1.1mm
Static capacitance (C0) 7pF max
Equivalent series resistance 30Ω max
Ageing ±5ppm max first year
Test drive level 100µW
Package Drawing
Package footprint and pad configuration drawing for the Golledge 7x5 4-pad Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-758 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Marking
Marking
Marking
Soldering Profile
Solder reflow profile

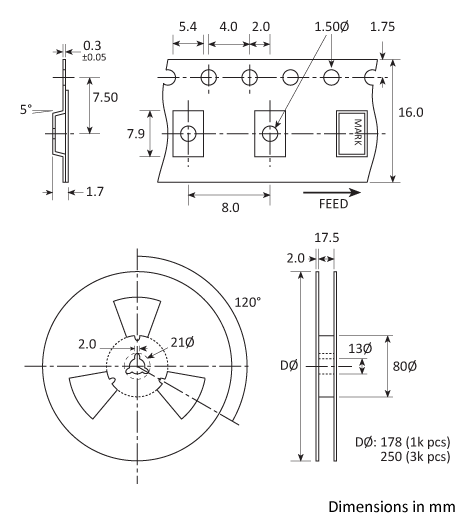

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic body with gold-plated pads Metal lid, seam sealed

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
