3225 4-pad crystal

GSX-333

3.0 x 2.5mm High Frequency SM Crystal with Tight Specifications

  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent long-term stability
  • Ultra-miniature for maximum space saving
  • Ideal for Bluetooth / Wireless applications
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
2
3
Temperature stability
1
2
3
Operating temperature range
1
2
4
Circuit condition
M
N
B
Oscillation mode
F
3
Quantity / Special Request

Please specify the quantity you require below.

The GSX-333 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-333 miniature surface mount crystal is available from 12.0 ~ 125.0MHz, in fundamental mode up to 54.0MHz, and with the choice of 3rd overtone from 54.0MHz upwards.

This miniature crystal has a 3.0 x 2.5 x 0.7mm ceramic package with metal lid which can be grounded to minimize EMI. The GSX-333 also features a wide range of frequency tolerance and temperature stability options, including stability as tight as ±10ppm. The GSX-331 also features a choice of circuit conditions and extremely low ageing characteristics, including just ±1ppm max for the first year.

For an alternative 3.0 x 2.5mm crystal solution with even tighter stability options available down to 10.0MHz, check out the GSX-331 here.

Specifications
Frequency range 12.0 ~ 54.0MHz
54.0 ~ 125MHz (3rd overtone)
Dimensions 3.2 x 2.5 x 0.7mm
Storage temperature range -40 to +85°C
Equivalent series resistance 100Ω max (12.0 ~ 15.99MHz) ..
60Ω max (16.0 ~ 19.99MHz) ..
50Ω max (20.0 ~ 54.0MHz, fund) ..
100Ω max (54.0 ~ 99.99MHz, 3rd OT) ..
80Ω max (100 ~ 125MHz, 3rd OT)
Frequency perturbation ±1ppm max
Ageing ±1ppm max first year
Test drive level 10µW
Soldering condition 260°C, 10 sec x2 max

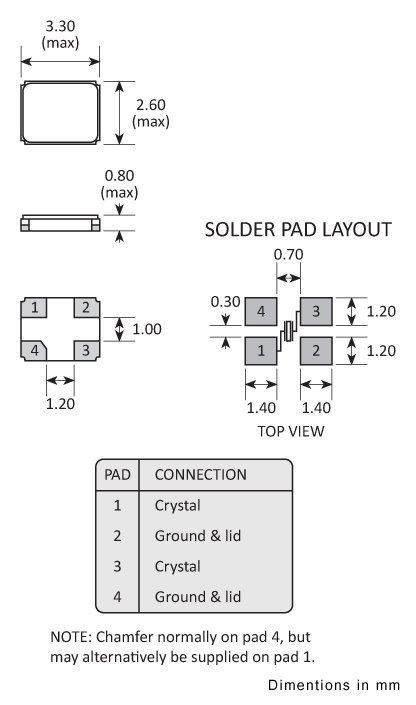

Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-333 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-333 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GSX-333 is included in the following design libraries. Click to download the library of your choice.

Applications

Our crystals and oscillators are regularly supplied for use with industry-leading ICs, from world-leading manufacturers including:

  • Analogue Devices
  • Atmel (Microchip Technology Inc.)
  • Broadcom
  • Dialog Semiconductor PLC
  • Intel
  • Nordic Semiconductor
  • NXP Semiconductors
  • Qualcomm (and CSR)
  • Silicon Labs
  • STMicroelectronics
  • Texas Instruments (TI)
  • Xilinx
  • and more...

If you'd like more information about chipset compatibility please get in touch with our team here.

Marking
Product surface markings
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 19mg
