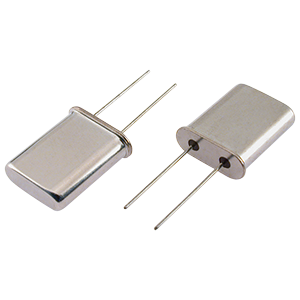

Golledge HC49 crystal package

HC49

Standard Crystal

  • Industry standard HC49 case
  • Fundamental mode available up to 40.0MHz
  • Tight specifications available
  • Wide frequency range available
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
2
3
5
Temperature stability
1
2
3
5
Operating temperature range
1
2
3
4
Circuit condition
B
D
E
F
J
S
Oscillation mode
F
3
5
Quantity / Special Request

Please specify the quantity you require below.

The HC49 is supplied in bulk. 100 pcs per bag is the standard bag size for this product.

Product Description

The HC49 industry-standard leaded crystal is available at high frequencies from 1.0MHz ~ 160MHz.

Highly configurable, HC49 is available in a choice of operating temperature ranges including industrial temperature range of -40 to +85°C, temperature stabilities as good as ±5ppm, calibration tolerances as tight as ±5ppm, and a wide choice of circuit conditions.

There are many alternative form-factor HC49 crystals including low profile leaded versions, HC49-4H (low profile with product height of 3.5mm) and HC49-3H (low profile version with product height of 2.5mm).

The HC49J offers a jacketed version of the full-height HC49 with formed leads for surface mount applications. Alternatively, the GSX49-4 and GSX49-3 offer surface mount versions of the HC49-4H and HC49-3H respectively.

Specifications
Frequency range 1.0 ~ 160MHz
Dimensions 11.05 x 4.65 x 13.46mm
Package Resistance weld
Operating temperature range 0 to +50°C
Equivalent series resistance 3000Ω max (1.0MHz)
700Ω max (1.80 ~ 2.0MHz)
500Ω max (>2.0 ~ 2.4MHz)
300Ω max (>2.4 ~ 3.0MHz)
200Ω max (>3.0 ~ 3.2MHz)
150Ω max (>3.2 ~ 3.7MHz)
100Ω max (>3.7 ~ 4.2MHz)
80Ω max (>4.2 ~ 6.0MHz)
50Ω max (>6.0 ~ 9.0MHz)
30Ω max (>9.0 ~ 36.0MHz)
60Ω max (>24.0 ~ 90.0MHz, 3rd OT)
80Ω max (>80.0 ~ 160.0MHz, 5th OT)
Static capacitance (C0) 7pF max
Ageing ±3ppm max first year
Test drive level 100µW

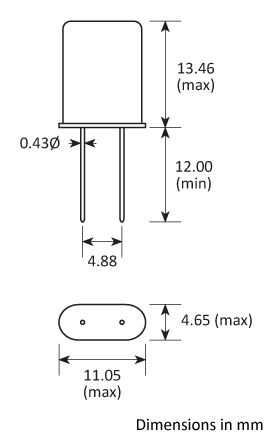

Package Drawing
Package footprint and pad configuration drawing for the Golledge HC49 Crystal showing full dimensions.
Ordering Information

To request a quotation for the HC49 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Resistance weld

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 840mg
