Industry Standard Footprint Leaded Crystal
- Industry standard HC49 footprint
- Fundamental mode available up to 50.0MHz
- Low profile for close board stacking
3.2768 ~ 90.0MHz

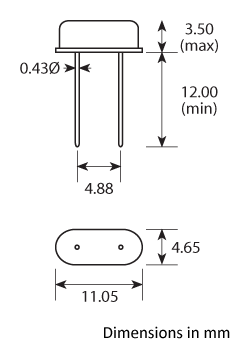

11.05 x 4.65 x 3.5mm
|Equivalent series resistance||
200Ω max (>3.2 ~ 3.5MHz)
150Ω max (>3.5 ~ 4.0MHz)
120Ω max (>4.0 ~ 4.4MHz)
100Ω max (>4.4 ~ 7.0MHz)
70Ω max(>7.0 ~ 10.0MHz)
50Ω max (>10.0 ~ 50.0MHz, fund)
100Ω max (>25.0 ~ 90.0MHz, 3rd OT)
|Static capacitance (C0)||
±3ppm max first year
|Test drive level||
To request a quotation for the HC49-4H please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at email@example.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
