Golledge GSX49-3 SM crystal package


Low 3.2mm Profile Formed Lead SM Crystal

  • Industry standard HC49 footprint
  • Low profile case for close board stacking
  • Wide frequency range
  • Fundamental mode available up to 50.0MHz
  • Low cost
Configurable Options
ParameterOption Code
Calibration tolerance
Temperature stability
Operating temperature range
Circuit condition
Oscillation mode
Quantity / Special Request

Please specify the quantity you require below.

The GSX49-3 is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Available over a wide frequency range of 3.578999 ~ 90.0MHz, the GSX49-3 is one our most competitive crystal products.

This crystal features a range of frequency tolerance and temperature stability options with a choice of operating temperature ranges available including industrial -40 to 85°C. The industry standard package is pad compatible with HC49 style packages, and the GSX49-3 is low profile with package height of only 3.2mm.

If package height is flexible the GSX49-4 offers an even more competitive solution

Frequency range 3.579 ~ 90.0MHz
Dimensions 11.4 x 4.7 x 3.2mm
Package HC49-3H SMD
Storage temperature range -40 to +90°C
Equivalent series resistance 300Ω max (>3.1 ~ 3.5MHz)
150Ω max (>3.5 ~ 4.0MHz)
120Ω max (>4.0 ~ 4.4MHz)
100Ω max (>4.4 ~ 7.0MHz)
70Ω max (>7.0 ~ 10.0MHz)
50Ω max (>10.0 ~ 50.0MHz, fund)
100Ω max (>25.0 ~ 90.0MHz, 3rd OT)
Static capacitance (C0) 7pF max
Ageing ±3ppm max first year
Test drive level 100µW
Net mass 450mg
Package Drawing

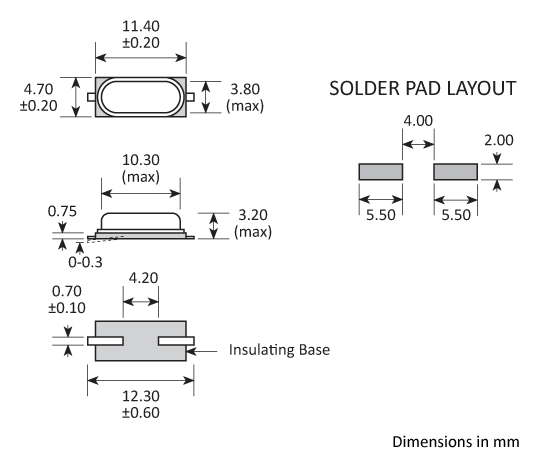

Package footprint and pad configuration drawing for the Golledge GSX49-3 Crystal showing full dimensions.
