4-pad 6x3.5 crystal

GSX-6C

Four Pad SM Crystal with 2.54mm Pitch Pads

  • Tight specifications available
  • Fundamental mode up to 40.0MHz
  • Metal lid can be grounded to minimise EMI
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
Temperature stability
Operating temperature range
Circuit condition
Ageing
Quantity / Special Request

Please specify the quantity you require below.

The GSX-6C is supplied on tape and reel. 1k or 2k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-6C crystal is available at frequencies between 8.0 ~ 67.0MHz and features a range of excellent frequency tolerance and temperature stability options within a four pad package featuring 2.54mm pad pitch.

The GSX-6C is no longer recommended for new designs, for a more competitive 6.0 x 3.5 x 1.0mm solution please consider the GSX-641.

Alternatively for a high frequency solution in a standard form factor package please consider the GSX-338, or if very high frequency is not needed the GSX-331 is a highly competitive crystal with a standard form factor package suitable for many new designs.

Specifications
Frequency range 8.0 ~ 40.0MHz (fund)
>40.0 ~ 67.0MHz (3rd OT)
Dimensions 6.0 x 3.5 x 1.1mm
Storage temperature range -30 to +85°C
Static capacitance (C0) 7pF max
Equivalent series resistance 150Ω max (8.0 ~ <9.0MHz)
80Ω max (9.0 ~ <12.0MHz)
60Ω max (12.0 ~ <16.0MHz)
40Ω max (16.0 ~ 40.0MHz, fund)
70Ω max (>40.0 ~ 67.0MHz, 3rd OT)
Test drive level 100µW

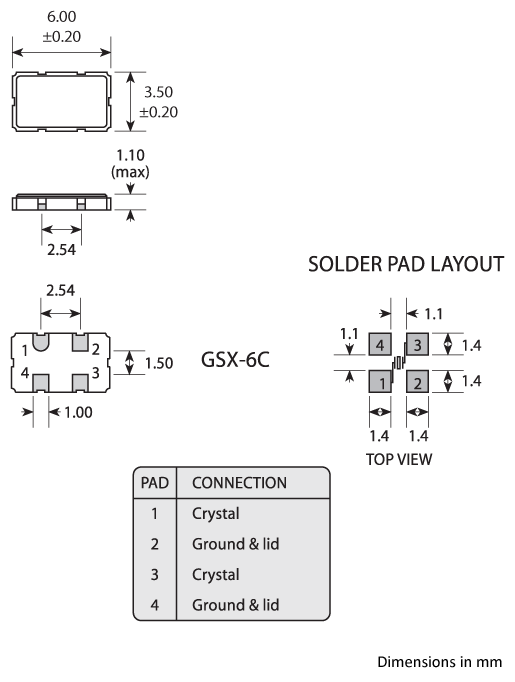

Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-6C Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-6C please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178* B:12 C:6.4 D:3.9 E:8 F:1.9 G:80 H:23
*Larger reel size available. Please ask for details

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
