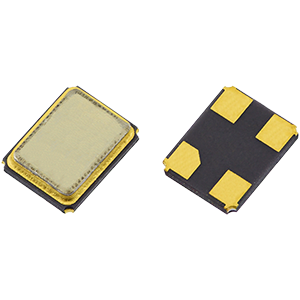

High Frequency Fundamental 3.2 x 2.5mm SM Crystal
- Fundamental mode up to 315MHz
- Plasma etched inverted mesa process
- Wide pulling range (fundamental mode)
- Small & medium volumes also available
- Custom frequencies available on short leadtimes
10.0 ~ 315MHz

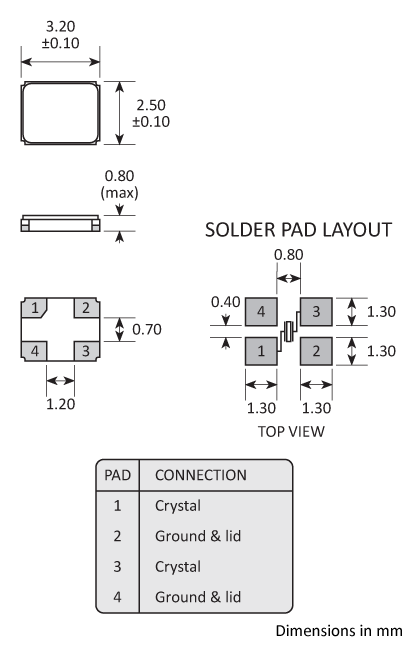

3.2 x 2.5 x 0.8mm
|Storage temperature range||
-40 to +90°C
|Static capacitance (C0)||
|Equivalent series resistance||
250Ω max (10.0 ~ 12.9MHz)
150Ω max (13.0 ~ 15.9MHz)
90Ω max (16.0 ~ 29.9MHz)
60Ω max (30.0 ~ 315MHz, fund)
±3ppm max first year
|Test drive level||
10µW typ, 100µW max
260°C, 10sec x2 max
To request a quotation for the GSX-338 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at email@example.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

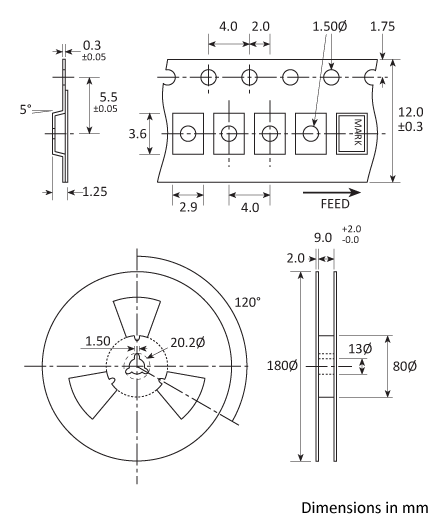

Tape & Reel Specification
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
- Ceramic body with gold-plated pads
- Metal lid, seam sealed
Please refer to our DOCUMENTS section for more information.
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions.
Free of conflict minerals.
Free from halogens.
Free from ozone-depleting substances.
