Golledge 4-pad 0.6mm high 2520 crystal package

GRX-320

Automotive Crystal (AEC-Q200)

  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
  • Metal lid can be grounded to minimise EMI
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
P
2
Temperature stability
P
2
5
C
Operating temperature range
4
A
Circuit condition
M
A
B
D
Oscillation mode
F
Quantity / Special Request

Please specify the quantity you require below.

The GRX-320 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Part of our dedicated automotive GRX range, the GRX-320 automotive crystal is available in frequencies from 12.0-40.0MHz and comes fully AEC-Q200 qualified as standard.

The GRX-320 miniature surface mount crystal features a choice of temperature stabilities , including as tight as ±15ppm, calibration tolerances, and circuit conditions. The miniature ceramic package with seam sealed metal lid makes the GRX-320 particularly ideal for tight-space applications that require excellent long-term stability and ageing characteristics.

Specifications
Frequency range 12.0 ~ 40.0MHz
Dimensions 2.5 x 2.0 x 0.6mm
Storage temperature range -40 to +125°C
Static capacitance (C0) 5pF max
Equivalent series resistance 150Ω max (12.0 ~ 15.99MHz)
80Ω max (16.0 ~ 19.99MHz)
60Ω max (20.0 ~ 29.99MHz)
50Ω max (30.0 ~ 34.99MHz)
40Ω max (35.0 ~ 40.0MHz)
Ageing ±3ppm max first year
Test drive level 10µW typ, 100µW max
Soldering condition 260°C, 10 sec x2 max
Qualification AEC-Q200 (Automotive)

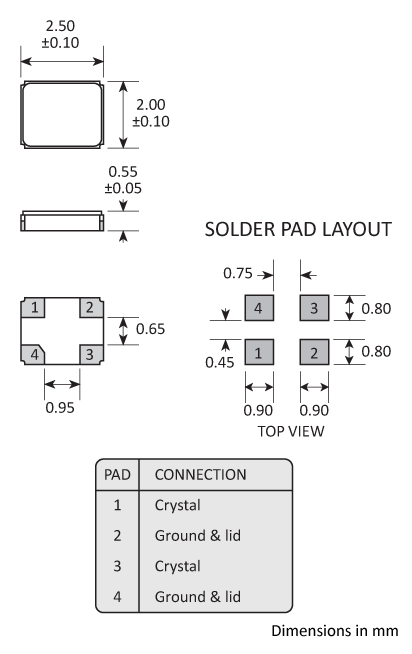

Package Drawing
Golledge 2.5x2.0 SM crystal package
Ordering Information

To request a quotation for the GRX-320 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GRX-320 is included in the following design libraries. Click to download the library of your choice.

Applications
  • Vehicle telematics
  • Connected car
  • Remote keyless entry (RKE)
  • Audio (DAB/Bluetooth)
  • Camera
Marking
Marking
Marking
Soldering Profile
Solder reflow profile

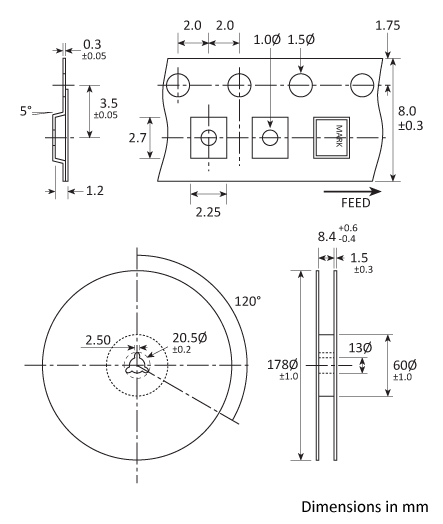

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
