3mmOD x 9mm cylinder crystal

GCX-39

High Frequency Cylindrical Leaded Crystal

  • Wide frequency range available
  • Excellent shock resistance
  • Miniature size for high density applications
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
3
5
Temperature stability
3
5
Operating temperature range
1
Circuit condition
B
D
F
J
S
Oscillation mode
F
3
Quantity / Special Request

Please specify the quantity you require below.

The GCX-39 is supplied in bulk. 1k pcs per bag is the maximum bag size for this product.

Product Description

The GCX-39 is available at high frequencies from 4.0 ~ 100MHz. GCX-39 also features a miniature package measuring 3.0 x 9.0mm, and is available in a choice of operating temperature ranges and with a range of temperature stabilities.

The GCX-39 is no longer recommended for new designs. If your new design requires a high frequency leaded product please consider our HC49-4H or UM-1 solutions.

Alternatively the GSX49-4 provides a highly competitive, high frequency, surface mount solution, or if size is paramount GSX-331 provides a highly competitive miniature alternative.

Specifications
Frequency range 4.0 ~ 100MHz
Dimensions ⌀3.0 x 9.0mm
Storage temperature range -40 to +85°C
Static capacitance (C0) 7.0pF max
Equivalent series resistance 150Ω (4.0 ~ 5.9MHz)
100Ω (6.0 ~ 9.9MHz)
50Ω (10.0 ~ 32.0MHz)
100Ω (30.0 ~ 35.9MHz, 3rd OT)
80Ω (36.0 ~ 90.0MHz, 3rd OT)
Ageing ±5.0ppm max first year
Test drive level 50µW
Soldering conditions 235°C, 5 sec max

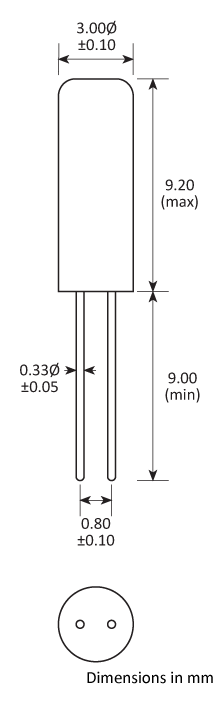

Package Drawing
Package footprint and pad configuration drawing for the Golledge GCX-39 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GCX-39 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Press seal

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
