Introducing the GTXO-205T and GTXO-205V - Our New High Temperature TCXOs
29 Jul 2020
EMILY RUSHTON - MARKETING
The GTXO-205T and GTXO-205V offer the engineer excellent frequency stability over extended operating temperature range
The new GTXO-205 family of temperature compensated oscillators contain two variants, GTXO-205T and the GTXO-205V with voltage control.
Both of these TCXOs feature excellent frequency stability of ±0.5ppm over extended operating temperature range of -40 to +105ºC, ideal for applications which require excellent stability at temperatures in excess of the standard industrial operating temperature range upper limit of 85ºC.
Both the GTXO-205T and GTXO-205V are available at frequencies between 16 ~ 52MHz, and feature ultra-miniature 2.0 x 1.6 x 0.8mm ceramic packages with seam sealing for additional longevity.

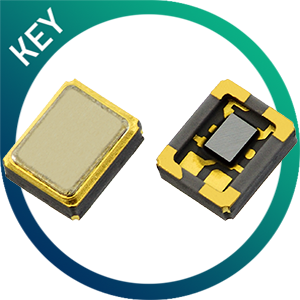

![The GTXO-205T is a Golledge key product and is the ideal frequency product for achieving excellent frequency stability at high temperatures of up to 105 degrees Celsius. The GTXO-205T is a Golledge key product and is the ideal frequency product for achieving excellent frequency stability at high temperatures of up to 105 degrees Celsius.](https://golledge-web.azureedge.net/cache/1/4/d/6/a/5/14d6a543b90dfe3e53fe5bb12989e99aaae05734.png)
These brand new TCXOs are operable from 1.8 ~ 3.3V, and feature clipped sine output with 10pF load. These TCXOs also feature good phase noise characteristics of -135kHz/dBc @ 1kHz.

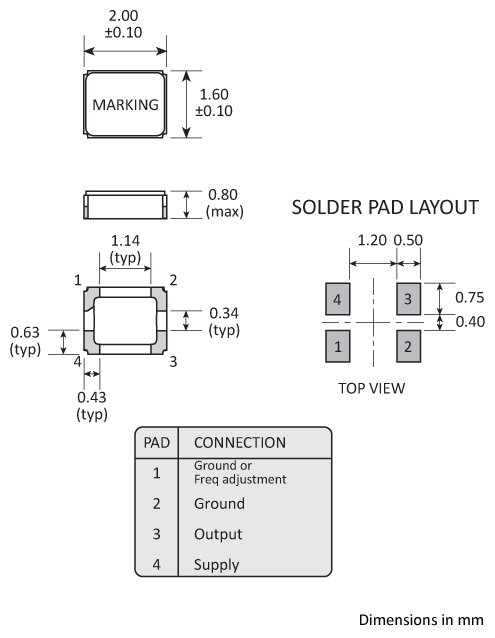

![The GTXO-205V high temperature TCXO comes with frequency adjustment as standard. The GTXO-205V high temperature TCXO comes with frequency adjustment as standard.](https://golledge-web.azureedge.net/cache/7/6/d/f/b/6/76dfb6dedb01679cbdc295fb432ca15f9b67b1b0.png)
The GTXO-205T and GTXO-205V also feature minimal current consumption, requiring only 1.5mA max at frequencies up to 26MHz, 2.0mA up to 32MHz, and 2.5mA up to 52MHz.
The GTXO-205V variant comes with voltage control capability as standard, with good frequency pullability range of ±8ppm minimum.
Find full product specifications and download the GTXO-205T datasheet here
