GVXO-38N

GVXO-38N

VCXO - Complementary ECL output voltage controlled oscillator with ultra high frequency range

  • High reference frequency
  • Complementary ECL output
  • Fast rise / fall times
  • Enable / disable tristate function
  • Metal SM package with glass epoxy base
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency range
Frequency pullability
Frequency stability
* see note below

* Stability is inclusive of calibration @ 25°C, operating temperature range, supply voltage change, load change and ageing, with VCTL = -2.5V

Quantity / Special Request

Please specify the quantity you require below.

The GVXO-38N is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GVXO-38N provides complementary ECL output at ultra high frequencies from 600 ~ 700MHz. Thanks to an internal high frequency reference, this VCXO is able to provide UHF output with minimal jitter.

This VCXO features negative supply voltage of -5V with voltage control producing better than 10% linearity and negative slope.

The GVXO-38N voltage controlled oscillator also features fast start up time of 10ms maximum, and commercial operating temperature range of -10 to +70°C.

Specifications
Frequency range 622.08MHz
666.51428MHz
669.32658MHz
Other (600 ~ 700MHz)
Dimensions 20.6 x 14.0 x 7.0mm
Voltage control (VCTL) -2.5V ±2.0V, 10% linearity, -ve slope
Operating temperature range -10 to +70°C
Storage temperature range -40 to +85°C
Supply voltage -5.2V (±5%)
Supply current 120mA max
Output Complementary ECL
Test load RTT = 50Ω
VTT = -2.0V
Logic levels ‘0’ level = -1.60V max
‘1’ level = -1.16V min
Waveform symmetry 40:60 max @ 50%VP-P
Start up time 10ms max
Rise / fall time 0.5ns max (20% ~ 80%VP-P)
Enable / disable function Control via pad 6
Soldering condition Reflow, 240°C max

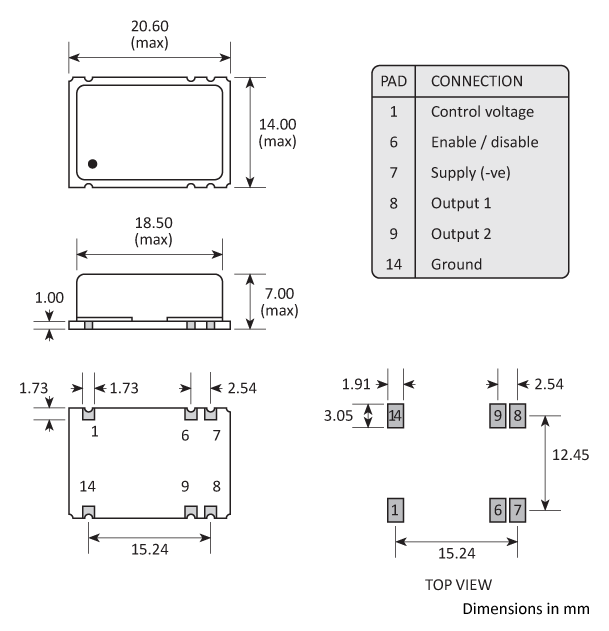

Package Drawing
Footprint
Ordering Information

To request a quotation for the GVXO-38N please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Once we've received your request our expert team will then produce a quotation tailored to meet your needs using the option codes you've selected.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 6)Output 1 (pad 8)Output 2 (pad 9)
Open Active Active
'1' level VIH High ('1') Low ('0')
'0' level VIL Active Active

‘0’ level: VIL ≤ -1.60V, ‘1’ level: VIH ≥ -1.10V

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:330 / B:32 / C:21.1 / D:14.6 / E:20 / F:7.6 / G:100 / H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Metal can with glass epoxy base

Compliance

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
