8-pad  High Precision TCXO / VCTCXO from Golledge


CMOS VCTCXO High Precision High Temperature Tristate

  • High Precision ±0.05ppm
  • High Temperature Operation +105°C
  • CMOS output
  • Tri-state function
Configurable Options
ParameterOption Code
Frequency stability
Temperature range
Supply voltage (VDD)

*Some combinations of frequency stability and wide temperature ranges may not be available. Our team will advise accordingly if this affects your enquiry.

Quantity / Special Request

Please specify the quantity you require below.

The GTXO-C76V is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Frequency range 10.0 ~ 52.0MHz
Dimensions 7.0 x 5.0 x 2.10
Storage temperature range -55 to +125°C
Supply voltage stability ±0.1ppm, VDD ±5%
Load stability ±0.05ppm, ZL ±10%
Ageing ±1.0ppm max first year
Supply current 7.5mA max
Driving ability 15pF CMOS
Waveform symmetry 45:55 @ 50%VDD
Logic levels ‘0’ level = 10%VDD max
‘1’ level = 90%VDD min
Start up time 5ms max
Frequency adjustment ±5ppm min, +1.5V ±1.0V
Phase noise (typ @ 20.0MHz) -130dBc/Hz @ 100Hz
-148dBc/Hz @ 1kHz
-156dBc/Hz @ 10kHz
Frequency Tolerance @25°C ±1.5ppm max, 60 mins after reflow

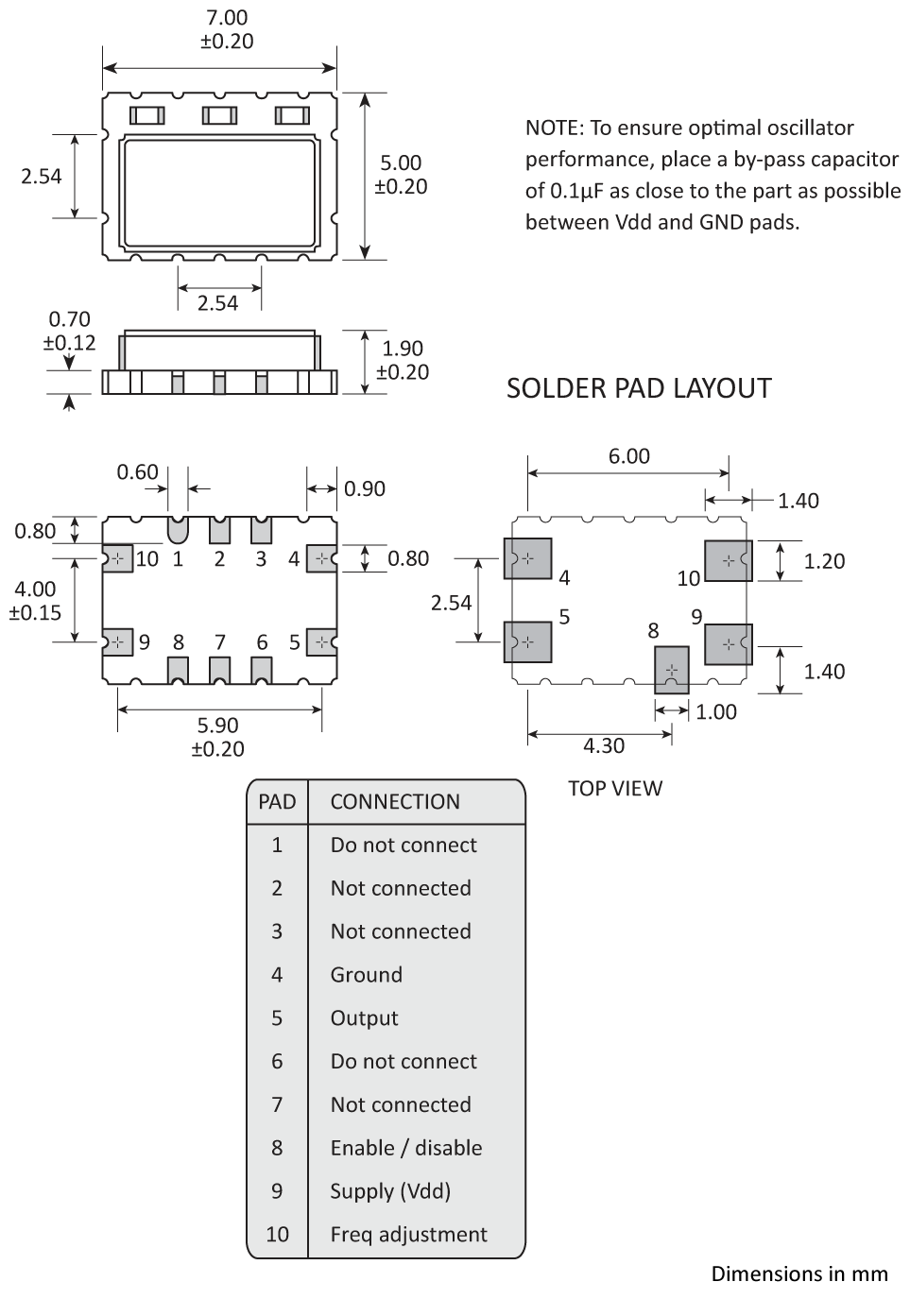

Package Drawing
