GTXO-560V
3V & 5V SM VCTCXO with Clipped Sine Output and Voltage Adjustment
- Fixed-frequency and voltage-controlled variants
- Low power consumption
- Stabilities down to ±1.0ppm
- Industrial temperature range option
- 3.0V, 3.3V or 5.0V supply voltage
Specifications
| Frequency range |
9.60 ~ 50.0MHz |
| Dimensions |
11.8 x 9.9 x 2.0mm |
| Package style |
4 pads, with trimmer access |
| Storage temperature range |
-40 to +85°C |
| Frequency vs supply voltage |
±0.3ppm (<22.0MHz) ±0.5ppm (<28.0MHz) ±1.0ppm (<50.0MHz) |
| Frequency vs load change |
±0.3ppm (10kΩ±10%//10pF±10%) |
| Ageing (1st yr) |
±1.0ppm (<22.0MHz) ±1.5ppm (<28.0MHz) ±2.0ppm (<50.0MHz) |
| Supply current |
2.0mA max (<22.0MHz) 3.0mA max (<28.0MHz) 4.0mA max (<50.0MHz) |
| Output waveform |
Clipped sine, 0.8V p-p typ |
| Test load |
10kΩ // 10pF |
| Frequency adjustment |
±3ppm min by internal trimmer ±5.0 ~ ±10.0ppm |
| Control voltage range |
+1.5V ±1.0V (3.0V supply) +1.65V ±1.35V (3.3V supply) +2.5V ±2.0V (5.0V supply) |
| Preset frequency |
±0.5ppm / +25°C ±2°C |
| Net mass |
453mg |

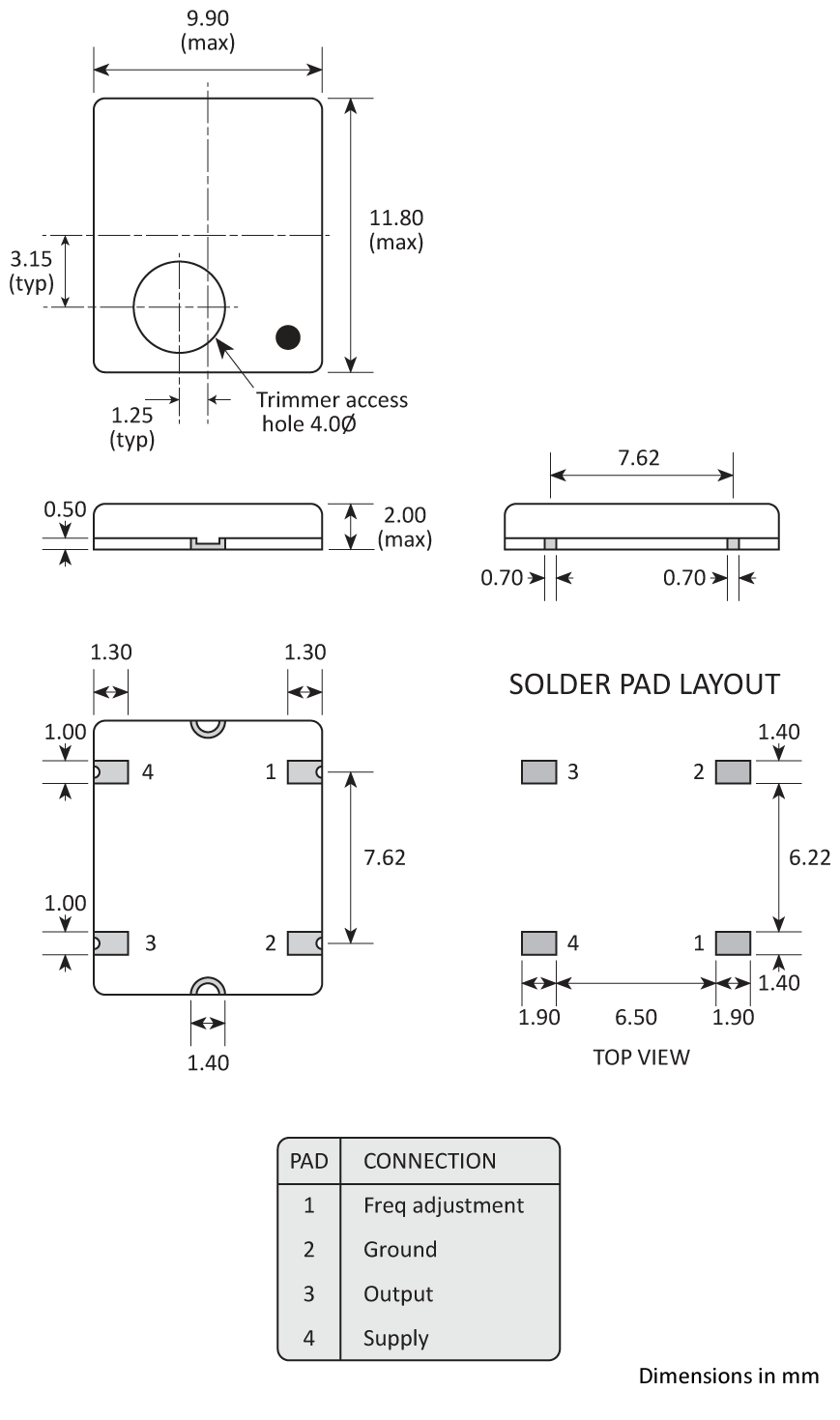

Package Drawing
Ordering Information
To request a quotation for the GTXO-560V please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Tape & Reel Specification
A:330 B:24 C:14 D:11 E:12 F:2.7 G:80 H:21
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
Construction
PCB base with metal lid
Compliance
Please refer to our DOCUMENTS section for more information.
RoHS compliant with no exemptions.
REACH compliant.
Free of conflict minerals.
Free from halogens.
Free from ozone-depleting substances.
