Golledge 10x12 TCXO with trimmer


3V & 5V SM TCXO with Clipped Sine Output and Internal Trimmer

  • Internal Trimmer
  • Low power consumption
  • Stabilities down to ±1.0ppm
  • Industrial temperature range option
  • 3.0V, 3.3V or 5.0V supply voltage
Configurable Options
ParameterOption Code
Frequency stability
Supply voltage (VDD)
Quantity / Special Request

Please specify the quantity you require below.

The GTXO-560T is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

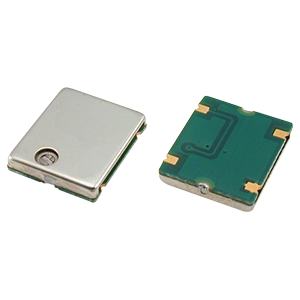

With 4-pad PCB base and metal lid package the GTXO-560T TCXO features an internal trimmer and comes with a choice of excellent frequency stability options including as tight as ±1.0ppm.

The GTXO-560T temperature compensated oscillator provides clipped sine output with very low ageing characteristics, and is available with a choice of 3.0V, 3.3V, 5.0V supply voltage.

Frequency range 9.60 ~ 50.0MHz
Dimensions 11.8 x 9.9 x 2.0mm
Package style 4 pads, with trimmer access
Storage temperature range -40 to +85°C
Frequency vs supply voltage ±0.3ppm (<22.0MHz)
±0.5ppm (<28.0MHz)
±1.0ppm (<50.0MHz)
Frequency vs load change ±0.3ppm (10kΩ±10%//10pF±10%)
Ageing (1st yr) ±1.0ppm (<22.0MHz)
±1.5ppm (<28.0MHz)
±2.0ppm (<50.0MHz)
Supply current 2.0mA max (<22.0MHz)
3.0mA max (<28.0MHz)
4.0mA max (<50.0MHz)
Output waveform Clipped sine, 0.8V p-p typ
Test load 10kΩ // 10pF
Frequency adjustment ±3ppm min by internal trimmer
Preset frequency ±0.5ppm / +25°C ±2°C
Net mass 453mg

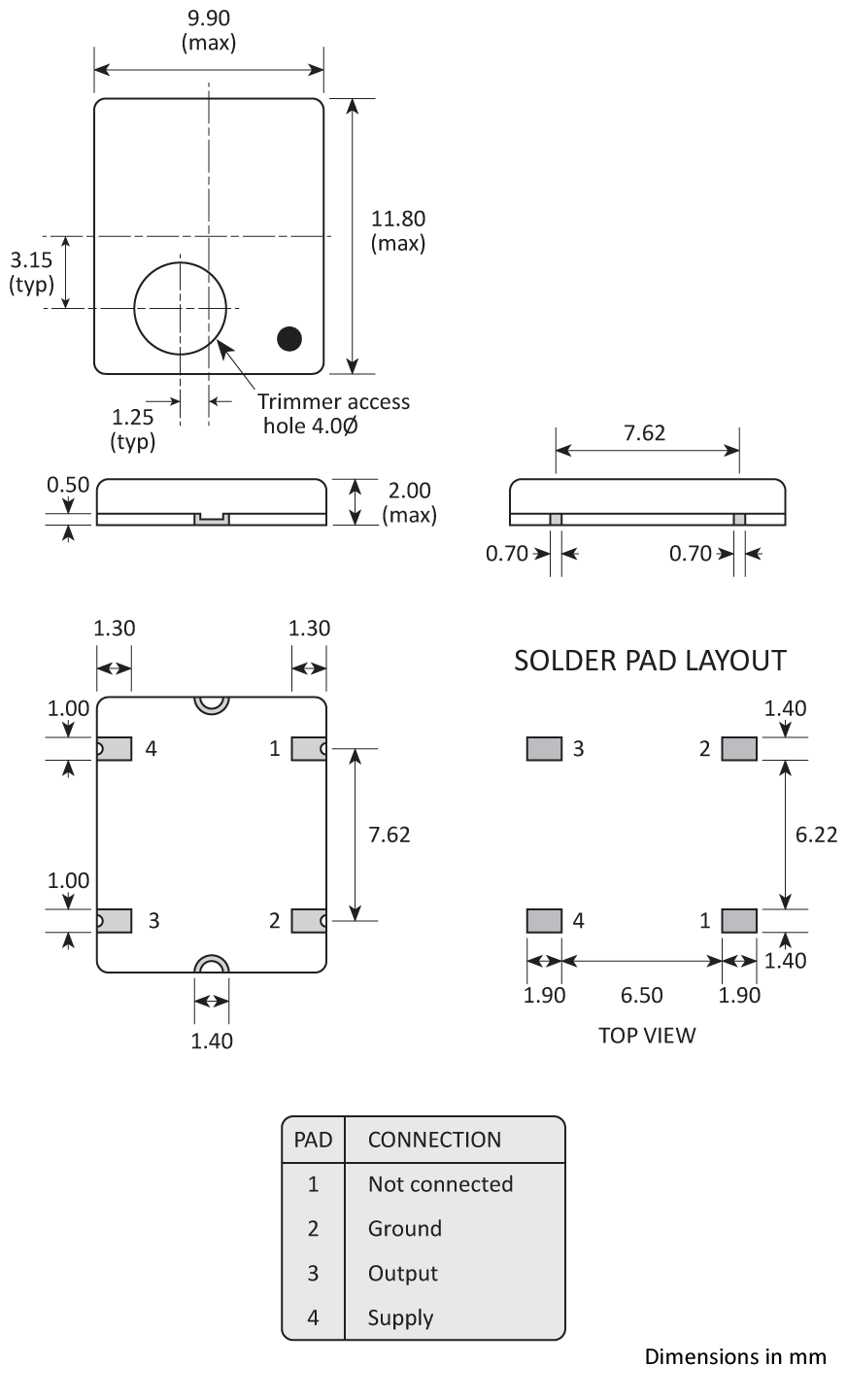

Package Drawing
Package footprint and pad configuration drawing for the Golledge GTXO-560T TCXO showing full dimensions.
Ordering Information

To request a quotation for the GTXO-560T please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications

A:330 B:24 C:14 D:11 E:12 F:2.7 G:80 H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)


PCB base with metal lid


Please refer to our DOCUMENTS section for more information.

RoHS compliant no exempts - PS Docs Version RoHS compliant with no exemptions.

REACH - PS Docs Version REACH compliant.

Conflict minerals - PS Docs version Free of conflict minerals.

Halogen free - PS Docs version Free from halogens.

Ozone depleting - PS Docs version Free from ozone-depleting substances.
