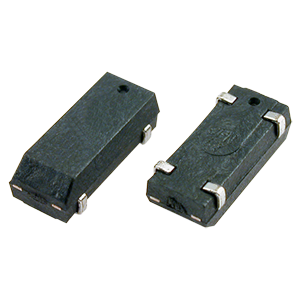

GSX-200

32.768kHz CM200C Watch Crystal

  • Compatible with Epson Toyocom MC-306, KDS DMX-26S, FSRLF, E1WS, SMQ32SL, RSM200S etc
  • Low profile plastic moulded package
  • Miniature size for high density applications
  • Industrial temperature range
  • 6pF version available for Dallas RTC
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Calibration tolerance
specify
Circuit condition
D
Quantity / Special Request

Please specify the quantity you require below.

The GSX-200 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The plastic moulded surface mount package of the GSX-200 is a fully compatible drop in replacement for MC-306, DMX-26S, FSRLF, E1WS, SMQ32SL, RSM200S and other industrial standard plastic-package crystals.

The ideal part for use within existing designs where a footprint has already been designed, the GSX-200 offers highly competitive pricing and is available up to industrial operating temperature ranges.

For new designs we would recommend the GSX-315 with miniature surface mount footprint.

Specifications
Frequency 32.768kHz
Dimensions 7.9 x 3.7 x 2.5mm
Temperature stability -50ppm (-10 to +60°C)
-130ppm (-30 to +80°C)
Operating temperature range -40 to +85°C
Storage temperature range -55 to +125°C
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.034±0.006ppm/°C2 typ
Static capacitance (C0) 1.35pF typ
Motional capacitance (C1) 3.0fF typ
Equivalent series resistance 50kΩ max @ 25°C
Ageing ±3ppm max first year
Drive level 1.0µW typ
Shock resistance ±5ppm max
Soldering conditions 260°C, 10sec max
Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-200 / GSX-250 Crystals showing full dimensions.
Ordering Information

To request a quotation for the GSX-200 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GSX-200 is included in the following design libraries. Click to download the library of your choice.


Autodesk Eagle

Altium

Pulsonix
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Plastic moulded surface mount package

Industry standard package

Material Composition

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 150mg

Composition
