1620 x 0.5mm Ultra low profile crystal package

GWX-1610

1610 Package 32.768kHz Watch Crystal

  • Competitive pricing for volume applications
  • Ultra low profile - 0.6mm high
  • Light weight miniature package
  • Vacuum sealed for high stability
Configurable Options
ParameterOption Code
Calibration tolerance
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The GWX-1610 is supplied on tape and reel. 5k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

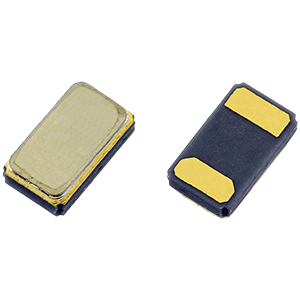

The ultra-miniature GWX-1610 watch crystal features highly-competitive pricing for high-volume commercial and consumer designs and measures just 1.6 x 1.0 x 0.5mm making it the ideal 32.768kHz solution for size-sensitive applications.

GWX-1610 also features a choice of calibration tolerances, and is available in a choice of circuit conditions at frequencies 32.768kHz.

For an alternative 1610 package watch crystal solution with wider operating temperature range options and lower drive level please consider the CM9V-T1A here.

Specifications
Frequency 32.768kHz
Dimensions 1.6 x 1.0 x 0.5mm
Operating temperature range -40 to +85°C
Storage temperature range -55 to +125°C
Static capacitance (C0) 1.2pF typ
Equivalent series resistance 90kΩ max @ 25°C
Ageing ±3ppm max first year
Drive level 1.0µW max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.036ppm/°C2 typ

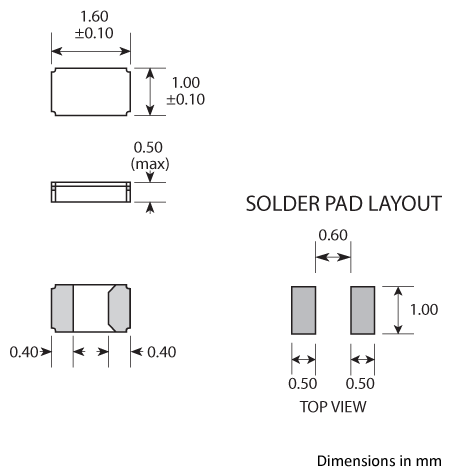

Package Drawing
Footprint
Ordering Information

To request a quotation for the GWX-1610 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

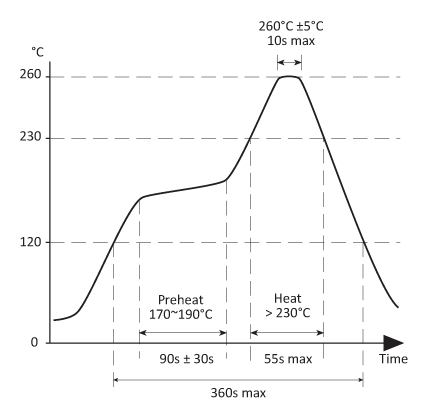

Soldering Profile
Solder reflow profile

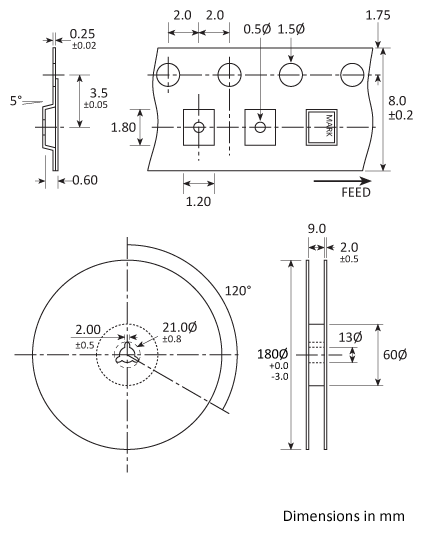

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, vacuum sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
