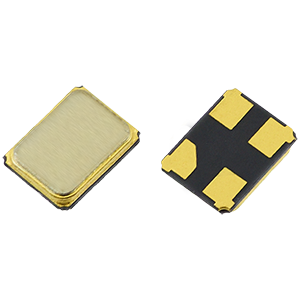

4-pad 0.35mm high crystal package

GRX-210

Ultra-miniature Automotive Crystal (AEC-Q200)

  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
  • Metal lid can be grounded to minimise EMI
  • Miniature size for maximum space/weight saving
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
P
2
Temperature stability
P
2
5
Operating temperature range
4
A
Circuit condition
M
A
B
D
Oscillation mode
F
Quantity / Special Request

Please specify the quantity you require below.

The GRX-210 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The smallest member of our dedicated automotive GRX range, the ultra-miniature 1.6 x 1.2 x 0.45mm GRX-210 automotive crystal is available in frequencies from 26.0-40MHz and comes fully AEC-Q200 qualified as standard.

The miniature ceramic package of the GRX-210 is vacuum sealed for excellent long term stability, and good ageing characteristics. This surface mount automotive crystal solution offers a range of temperature stability, calibration tolerance and circuit condition options, and is highly cost effective at large volume, making it ideal for larger-scale automotive projects.

Specifications
Frequency range 26.0 ~ 40.0MHz
Dimensions 1.6 x 1.2 x 0.45mm
Storage temperature range -40 to +125°C
Static capacitance (C0) 5pF max
Equivalent series resistance 100Ω max (26.0 ~ 29.99MHz)
80Ω max (30.0 ~ 40.0MHz)
Ageing ±3ppm max first year
Test drive level 10µW typ, 100µW max
Soldering condition 260°C, 10 sec x2 max
Qualification AEC-Q200 (Automotive)
Package Drawing
Package footprint and pad configuration drawing for the Golledge 1.6x1.2mm Crystal showing full dimensions.
Ordering Information

To request a quotation for the GRX-210 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GRX-210 is included in the following design libraries. Click to download the library of your choice.

Applications
  • Vehicle telematics
  • Connected car
  • Remote keyless entry (RKE)
  • Audio (DAB/Bluetooth)
  • Camera
Marking
Marking
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
