GMCF-10 10G7B 10.7MHz 4 pole crystal filter with 7.5kHz 3dB bandwidth
- Comprehensive stocks
- Custom specifications available

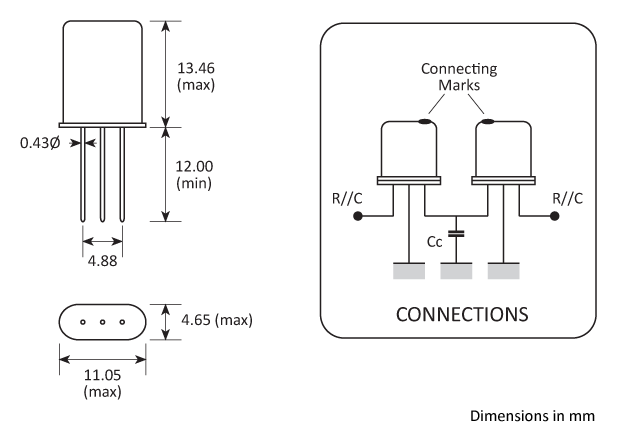

11.05 x 4.65 x 13.46mm
|Operating temperature range||
-20 to +70°C
|Number of poles||
-3dB @ ±3.75kHz min
-40dB @ ±14.0kHz max
-50dB max +300 ~ +1000kHz
-70dB max -200 ~ -1000kHz
1800Ω // 5.0pF
|Coupling capacitance (CC)||
To request a quotation for the GMCF-10 10G7B please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at firstname.lastname@example.org.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
These filters are individually matched pairs. One filter is composed of two physical units, which have been factory-matched for optimum performance.
DO NOT MIX. Unmatched pairs will offer impaired performance.
For filters supplied in boxes, please refer to the above diagram.
Matched pairs may also be supplied in individual bags.
