Golledge GSX-11 4-pad Quartz Crystal

GSX-11

Low Frequency SM Crystal with Low Height

  • Ideal for low height, low frequency projects
  • Wide frequency range
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
3
5
Temperature stability
3
Circuit condition
B
Oscillation mode
F
3
Quantity / Special Request

Please specify the quantity you require below.

The GSX-11 is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Ideal for applications that require low frequency and low height options, the GSX-11 crystal is available at frequencies between 3.2 ~ 70.0MHz and features product height of just 2.1mm, in addition to a range of excellent frequency tolerance and temperature stability options.

This product is no longer recommended for new designs that require higher frequencies, for new deisgns whihc require frequencies greater than 10.0MHz, please consider the GSX-331 here.

Similarly for new designs that require low frequencies but which can accept height of greater than 2.1mm, please consider the more competitive GSX49-4 here.

Specifications
Frequency range 3.20 ~ 70.0MHz
Dimensions 12.1 x 5.8 x 2.1mm
Operating temperature range -10 to +60°C
Operable temperature range -30 to +85°C
Static capacitance (C0) 7pF max
Equivalent series resistance 200Ω max (3.2 ~ 3.9MHz)
120Ω max (4.0 ~ 4.9MHz)
80Ω max (5.0 ~ 5.9MHz)
60Ω max (6.0 ~ 7.9MHz)
45Ω max (8.0 ~ 11.9MHz)
35Ω max (12.0 ~ 14.9MHz)
30Ω max (15.0 ~ 26.9MHz)
100Ω (27.0 ~ 70.0MHz, 3rd OT)
Ageing ±5ppm max first year
Test drive level 100µW
Soldering condition 260°C, 10 sec x2 max

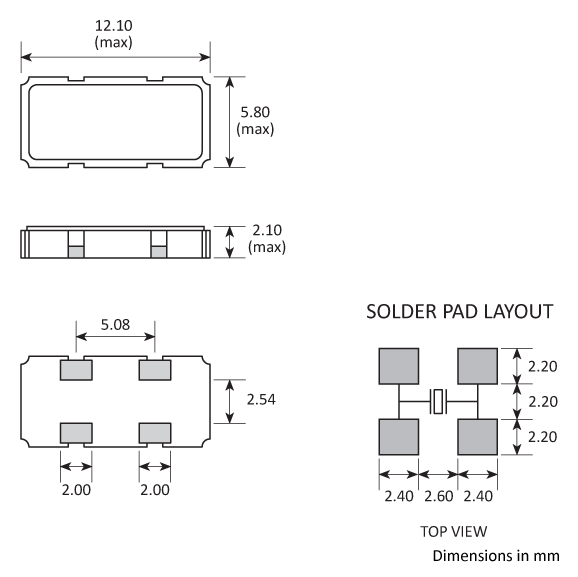

Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-11 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-11 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:250 B:24 C:12.2 D:5.9 E:12 F:2.5 G:80 H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
