Golledge DIL-14 OCXO package


3.3V OCXO Sine Output

  • Excellent phase noise performance @ 100MHz
  • -160dBc noise floor @ 10.0MHz
  • Fundamental mode frequencies up to 120MHz
  • Compact 14-pin DIL package (SMD optional)
  • High shock and vibration resistance
Configurable Options
ParameterOption Code
Temperature stability
Frequency adjustment
(±2.5ppm min ≤ 40MHz, ±4.0ppm min > 40MHz)
Quantity / Special Request

Please specify the quantity you require below.

The SCOCXOHSW is supplied in bulk. 50pcs per tray is the standard pack size for this product. Orders for partial quantities will receive partial trays.

Product Description

Available in fundamental mode at high frequencies of up to 120MHz, the SCOCXOHSW features 100MHz phase noise floor of -155dBc/Hz @ 100kHz, and is available with 5,000G shock resistance specifications, making it ideal for complex projects in extreme applications such as military, defence and aviation.

The SCOCXOHSW features sine output with a choice of 14-pin DIL or surface mount package, and is available with supply voltage 3.3V.

Frequency range 10.0 ~ 120MHz
Dimensions 20.1 x 12.5 x 8.0mm
Frequency stability ±0.3ppm max first year (≤40MHz)
±2.5ppm max in 10 years (≤40MHz)
±1.0ppm max first year (>40MHz)
±4.0ppm max in 10 years (>40MHz)
±0.1ppm max vs VDD
±10ppb max vs load ±5%
Short term stability 1x10-10 max, t 0.1 to 30s
5x10-11 typ at 1s
Storage temperature range -55 to +125°C
Output waveform Sinewave 50Ω
Harmonics -15dBc typ
Spurii -70dBc max
Level ≥ 2dBm / 50Ω (≤20MHz)
≥ -6dBm / 50Ω (>20MHz)
Start up time 5ms max
Supply voltage (VDD) +3.3V (±0.15V)
Input current 350mA max for up to 30s @ 25°C during start up
120mA max @ +25°C
170mA max @ -20°C
Warm up time 120s to within ±0.1ppm @ 25°C
Phase noise (dB typ @ 100MHz) -90dBc/Hz @ 10Hz
-120dBc/Hz @ 100Hz
-140dBc/Hz @ 1kHz
-150dBc/Hz @ 10kHz
-155dBc/Hz @ 100kHz
Shock & vibration 5,000g, 0.3ms ½-sine
10.0 ~ 2,000Hz, 20g

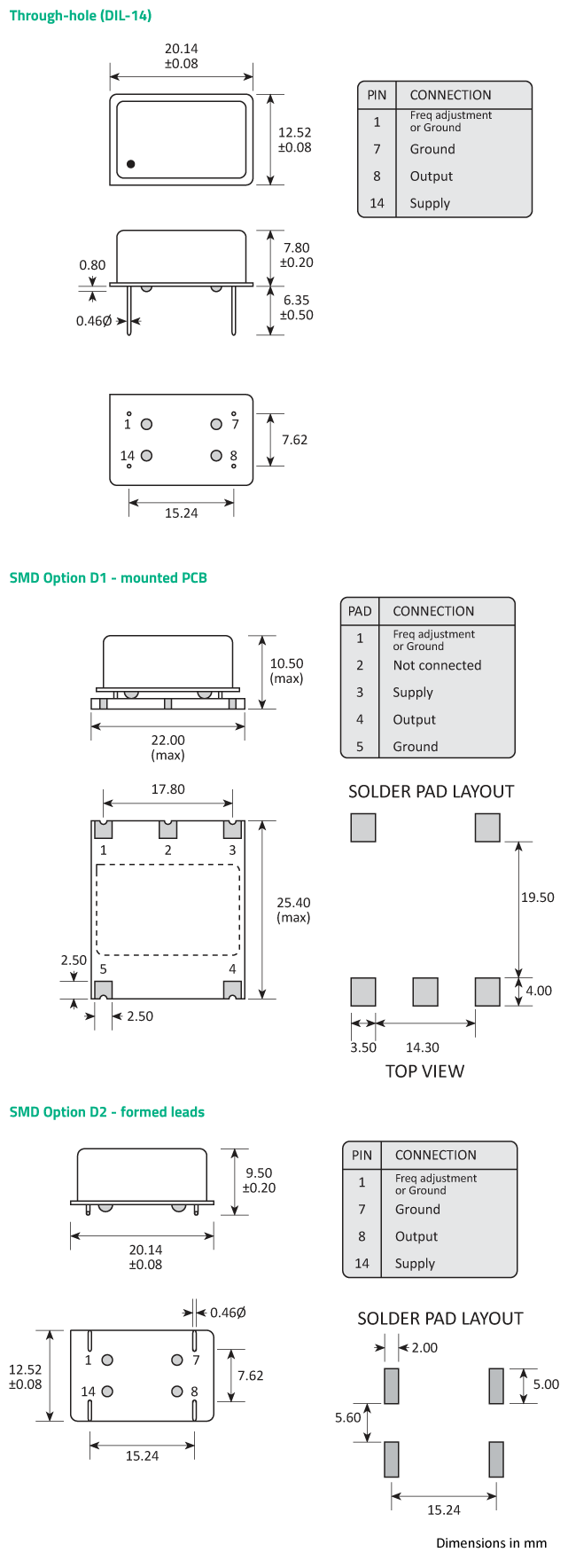

Package Drawing
Golledge DIL-14 and SMD D1 and D2 OCXO package options.
Ordering Information

To request a quotation for the SCOCXOHSW please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our SCOCXOHSW is included in the following design libraries. Click to download the library of your choice.

  • This SCOCXOHSW oven controlled oscillator is suitable for a wide range of applications including:

    • Digital switching
    • Telecom transmission
    • SONET / SDH / DWDM / FDM/36 / WIMAX
    • Airborne equipment
    • Battery operated systems
    • Instrumentation
    • Radio transceivers

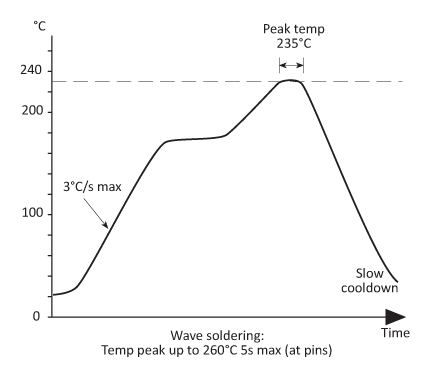

Soldering Profile
Solder reflow profile
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)


Resistance weld

Material Composition

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
