OV0100C8

Fully ceramic 100kHz SM Oscillator

  • Fully ceramic package
  • Ultra low power consumption
  • Optional AEC-Q200 qualification
  • Ultra-miniature
  • High shock and vibration resistance
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Calibration tolerance
Qualification
A
Quantity / Special Request

Please specify the quantity you require below.

The OV0100C8 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The fully ceramic, ultra-miniature package of the OV0100C8 makes it ideal for material and size-sensitive designs.

This 100kHz oscillator is operable from 1.6~5.5V, and features ultra-low current consumption of just 0.55μA typical, with optional AEC-Q200 qualification.

Encased within an ultra-miniature 2.0 x 1.2 x 0.85mm package, the OV0100C8 also has excellent shock and vibration resistance, making it suitable for use under high shock and vibration conditions. The ageing characteristics of this oscillator are also very low, just ±3ppm first year maximum at 25°C, making it suitable for long-life equipment designs.

Specifications
Frequency 100kHz
Dimensions 2.0 x 1.2 x 0.85mm
Operating temperature range -40 to +85°C
Turnover temperature (T0) +28°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 ±10%
Storage temperature range -55 to +125°C
Supply voltage (VDD) Operable from 1.6 ~ 5.5V
Supply current (backup mode) 0.55μA typ, 0.75μA max
(VDD 3.0V, output disabled)
Logic levels ‘0’ level = +0.4V max
‘1’ level = VDD-0.4V min
Waveform symmetry 40:60 max @ 50%VDD
Driving ability CMOS
Voltage coefficient ±3ppm/V max
Rise / fall time 30ns typ, 70ns max
Start up time 50ms typ, 500ms max @ 25°C
Enable / disable function Control via pad 3
Ageing ±3ppm max first year @ 25°C
Shock resistance ±5ppm, 5,000g, 0.3ms ½-sine
Vibration resistance ±5ppm, 20g rms 10.0 ~ 2,000Hz
Soldering condition Reflow, 260°C, 20 sec max
Net mass 6.0mg
Package Drawing
Footprint
Ordering Information

To request a quotation for the OV0100C8 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 3)Output (pad 1)
'1' level Enabled
'0' level Disabled

Note: Pad 3 should not be allowed to float

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178 / B:8 / C:2.3 / D:1.5 / E:4 / F:0.9 / G:61.5 / H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Full ceramic package

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

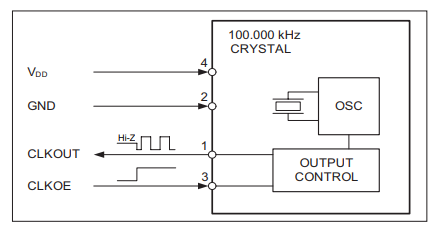

Block Diagram
Block Diagram
