Golledge DIL-14 OCXO package

OCXOVT-S

5V OCXO Sine Output Cospas-Sarsat

  • Designed for Cospas-Sarsat applications
  • High shock & vibration resistance
  • Compact 14-pin DIL package (SMD optional)
  • 5.0V supply voltage
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Package
D1
D2
Quantity / Special Request

Please specify the quantity you require below.

The OCXOVT-S is supplied in bulk. 50pcs per tray is the standard pack size for this product. Orders for partial quantities will receive partial trays.

Product Description

Specially developed for Cospas-Sarsat applications, the OCXOVT-S oven controlled oscillator provides excellent prolonged physical shock, thermal shock, and vibration resistance, and has been life tested over 1000 hours to ensure premium performance and full Cospas-Sarsat compliance.

The OCXOVT-S features sine wave output and a choice of robust DIL 14 package or surface mount packages, and is available with supply voltage 5.0V at frequencies from 10.0kHz ~ 54.0MHz.

Specifications
Frequency range 10.0kHz ~ 54.0MHz
Dimensions 20.1 x 12.5 x 8.0mm
Frequency calibration 1.0ppm max, pin 1 to GND
Frequency vs temperature 3x10-9, 50s
after 15min and ramp of +5°C / hr
Frequency stability ±4.5ppm max in 10 years
±0.1ppm max vs VDD
±10ppb max vs load ±10%
Short term stability 5x10-10 , t 0.1 to 30s
5x10-11 typ at 1s
Storage temperature range -55 to +125°C
Output waveform Sinewave ,1V peak to peak
Load 5pF min, 15pF max
Start up time 5ms max
Supply voltage (VDD) +5.0V (±0.2V)
Input current 350mA max for up to 10s @ -40°C during start up
40mA max @ +25°C
70mA max @ -20°C
Warm up time (secs) 60s to within ±0.1ppm @ 25°C
Phase noise (typ @ 10MHz) -100dBc/Hz @ 10Hz
-130dBc/Hz @ 100Hz
-140dBc/Hz @ 1kHz
-145dBc/Hz @ 10kHz
Shock & vibration 500g, 4.0ms ½-sine 6 directions
100g, 23.0ms ½-sine 6 directions
10.0 ~ 2,000Hz, 20g
Thermal shocks 25 cycles, -55 ~ +85°C
Life test 1000 hours
Warm storage ageing 1000 hours
Soldering conditions +235°C, 10secs max
+260°C, 5 secs max

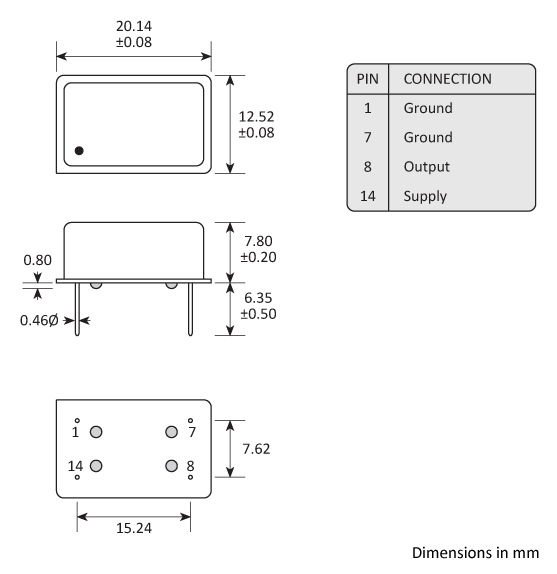

Package Drawing
Golledge DIL-14 OCXO package
Ordering Information

To request a quotation for the OCXOVT-S please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Technical Resources
Applications

This OCXOVT-S oven controlled oscillator is suitable for a wide range of applications including:

  • Digital switching
  • Telecom transmission
  • SONET / SDH / DWDM / FDM/36 / WIMAX
  • Airborne equipment
  • Battery operated systems
  • Instrumentation
  • Radio transceivers



Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Resistance weld

Compliance

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
