MCSO6EV

3.3V Miniature CMOS Oscillator for Extreme Environments -55+210°C

  • Suitable for Avionics, Down-hole, Geothermal etc
  • Extreme temperature ranges up to 210°C
  • High stability & low ageing under extremes
  • High shock & vibration resistance
  • Optional tinned pads (Ag/Cu/Sn)
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency stability
* see note below
C
E
D
G
Enable / disable function
E
Terminations
T

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply voltage change, load change and long term ageing (1,000hrs at TMAX).

Quantity / Special Request

Please specify the quantity you require below.

The MCSO6EV is available supplied either on tape and reel or packaged within trays. T&R standard pack size is 250~1000pcs and standard tray size is 208pcs per tray. Partial quantities may be supplied on tape (no reel), partial trays, or in bulk.

Product Description

Designed especially for extreme environments, the MCSO6EV miniature 3.3V oscillator is available over wide frequency range of 10.0kHz ~ 60.0MHz with superb shock and vibration resistance and optional -55 to +210°C extreme operating temperature range.

The MCSO6EV miniature CMOS oscillator also features fast start up time of 5ms, and low ageing characteristics under extreme conditions.

The ultra-miniature fully ceramic package 3.5 x 2.2 x 1.2mm package of this oscillator features a choice of pad termination materials, ensuring this component can meet your needs even if your application or manufacturing process is material sensitive.

Specifications
Frequency range 10.0kHz ~ 60.0MHz
Dimensions 3.5 x 2.2 x 1.2mm
Supply voltage (VDD) +3.3V (±5%)
Storage temperature range -65 to +125°C
Supply current 1mA max (@32.768kHz)
4mA max (≤10MHz)
5mA max (>10.0 ~ 20.0MHz)
20mA max ( >20.0MHz)
Driving ability CMOS
Load 3pF min, 47pF max
Logic levels ‘0’ level = +0.4V max
‘1’ level = VDD-0.5V min
Start up time 5ms max
Waveform symmetry 40:60 max @ 50%VDD
Rise / fall time 7ns max (15pF, 20~80% VP-P)
150ns max @ 32.768kHz
Shock resistance 10,000g, 0.3ms, ½ sine
Vibration resistance 80g rms 10.0 ~ 2,000Hz
Soldering condition 260°C, 10 sec max

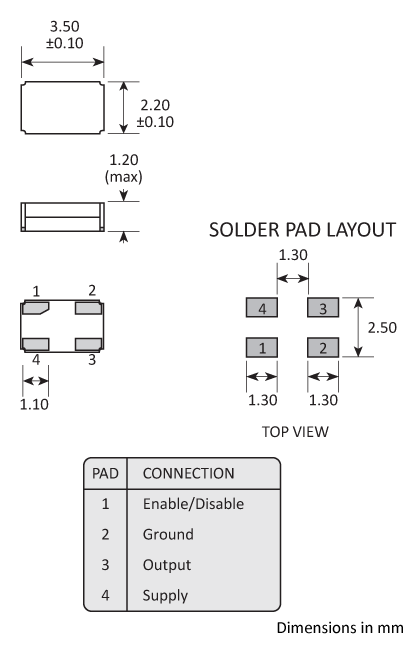

Package Drawing
Package footprint and pad configuration drawing for a 3.5 x 2.2 x 1.2mm Golledge Oscillator.
Ordering Information

To request a quotation for the MCSO6EV please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 1)Output (pad 3)
Open Enabled
'1' level Enabled
'0' level No clock

Reaction time <1µs

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid (kovar lid on option code G)

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
