Golledge HCD350 series OCXO

HCD361

12V Tight Stability OCXO with HCMOS Output

  • Temperature stability down to 5ppb
  • Single 12V supply (15V or 18V optional)
  • Compact package
  • Standard European IEC CO-08 pin-out
  • Custom options available
Configurable Options
ParameterOption Code
Frequency
Ageing per day (at despatch)
D
E
F
Temperature stability
P
R
S
Operating temperature range
A
C
F
Supply voltage (VDD)
N
P
R
Quantity / Special Request

Please specify the quantity you require below.

The HCD361 is supplied in boxes. 10 pcs per box is the maximum box size for this product.

Product Description

The HCD361 oven controlled oscillator with CMOS/TTL output features exceptionally tight temperature stability of ±5ppb and low phase noise specifications, with 10.0MHz performance producing phase noise of -155dBc/Hz @ 10kHz.

Also featuring excellent ageing characteristics, with options of <±2 x 10-10 per day at dispatch, the HCD361 is available with 12.0V single oven and oscillator supply, with 15.0V or 18.0V also available on request.

Specifications
Frequency range 5.0 ~ 20.0MHz
Dimensions 36.1 x 27.2 x 19.4mm
Frequency stability < ±5x10-8 per year
< ±1x10-9 per 10% change in VDD
Short term stability < ±1x10-11 over 1 sec
Storage temperature range -40 to +90°C
Output waveform CMOS / TTL compatible
Frequency adjustment ±5x10-7 (typ) over +0.5 to +7.0V
(sufficient for 10 years ageing min)
Stabilised +7.0V supply provided
Power consumption 5.0W max at switch on
1.2W typ when stabilised at 25°C
Warm up < ±1x10-8 after 10mins at +20°C
Phase noise (@ 10.0MHz) < -125 dBc/Hz @ 10Hz
< -135 dBc/Hz @ 100Hz
< -150 dBc/Hz @ 1kHz
< -155 dBc/Hz @ 10kHz
< -155 dBc/Hz @ 50kHz
Harmonics < -30dB wrt carrier
Shock (IEC 68-2-27 Test Ea) 50g for 11ms
Vibration (IEC 68-2-06 Test Fc) 10-55Hz, 1.5mm. 55-500Hz, 10g

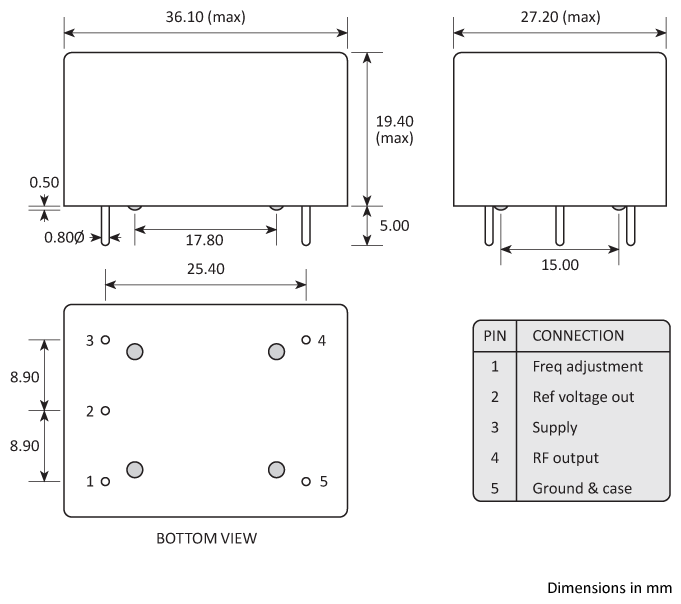

Package Drawing
Package footprint and pad configuration drawing for the Golledge HCD300 series OCXOs showing full dimensions.
Ordering Information

To request a quotation for the HCD361 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Solder sealed metal can

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
