Golledge 3225 1mm high 4-pad oscillator


1.8V 3.2x2.5mm Miniature Oscillator

  • Enable / disable tristate function
  • Miniature ceramic package with metal lid
  • Competitive pricing
Configurable Options
ParameterOption Code
Frequency stability
Operating temperature range
Quantity / Special Request

Please specify the quantity you require below.

The GXO-U119G is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The ultra-miniature 3.2 x 2.5mm GXO-U119G 1.8V oscillator is available over a wide frequency range of 1.8 ~ 133MHz.

This oscillator also features 15pF CMOS driving ability, and very fast rise/fall time of 3.5ns (or 5ns below 32.1MHz). The GXO-U119G comes with enable/disable functionality as standard and offers a choice of tight frequency stability options over commercial or automotive operating temperature ranges.

Frequency range 1.8 ~ 133.0MHz
Dimensions 3.2 x 2.5 x 1.1mm
Storage temperature range -55 to +125°C
Supply voltage (VDD) +1.8V (±5%)
Supply current 7mA max (1.8 ~ 50.0MHz)
20mA max (>50.0 ~ 133MHz)
Logic levels ‘0’ level = 20%VDD max
‘1’ level = 80%VDD min
Start up time 10ms max
Waveform symmetry 40:60 max @ 50%VDD
Driving ability 15pF CMOS
Rise / fall time 5ns max (1.8 ~ 32.0MHz)
3.5ns max (>32.0 ~ 133MHz)
Enable / disable function Tristate (control via pad 1)
Standby current 10µA max
Package Drawing

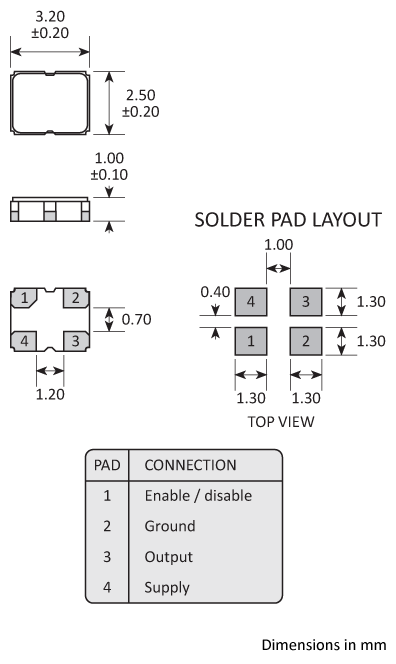

Package footprint and pad configuration drawing for Golledge GXO-3300 series, GXO-3306 series, and GXO-U119 series oscillators showing full dimensions.
Ordering Information

To request a quotation for the GXO-U119G please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 1)Output (pad 3)
Open Enabled
'1' level Enabled
'0' level High Impedance
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
