6035 6.0x3.5mm Golledge SMT Oscillator Package

GXO-U114G

1.8V Oscillator with Low Power Consumption

  • Low voltage and power consumption
  • Enable / disable tristate function
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency stability
B
A
Operating temperature range
I
Quantity / Special Request

Please specify the quantity you require below.

The GXO-U114G is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The 1.8V GXO-U114G 6.0 x 3.5mm oscillator is available at high frequencies from 30.0 ~ 70.0MHz and offers excellent frequency stability options and low current consumption over a wide -40 to +85°C operating temperature range.

This oscillator comes with enable/disable tristate functionality as standard.

Specifications
Frequency range 30.0 ~ 70.0MHz
Dimensions 6.0 x 3.5 x 1.5mm
Storage temperature range -55 to +125°C
Supply voltage (VDD) +1.8V (±5%)
Supply current 15mA max
Logic levels ‘0’ level = 20%VDD max
‘1’ level = 80%VDD min
Start up time 10ms max
Waveform symmetry 40:60 max @ 50%VDD
Driving ability 15pF CMOS
Rise / fall time 3.5ns max
Enable / disable function Tristate (control via pad 1)
100ns / 100ns max
Package Drawing

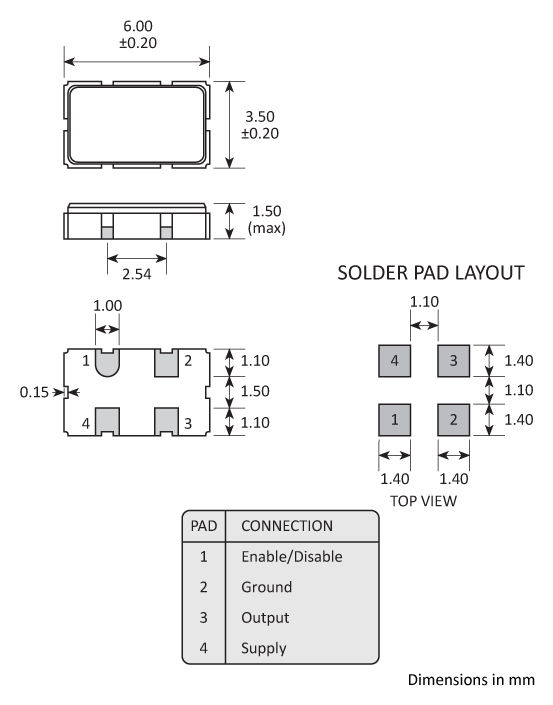

Package footprint and 4-pad Golledge 6x3.5x1.5 Oscillator showing full dimensions.
Ordering Information

To request a quotation for the GXO-U114G please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 1)Output (pad 3)
Open Enabled
'1' level Enabled
'0' level High Impedance
Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:255 B:12 C:6.4 D:3.9 E:8 F:1.9 G:80 H:25

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
