GXO-U103H

3.3V DIL-8 Package Leaded Oscillator with High Drive Capability

  • Industrial temperature range option
  • Tight tolerance options
  • Enable / disable tristate function
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency stability
B
A
Operating temperature range
I
Quantity / Special Request

Please specify the quantity you require below.

The GXO-U103H is supplied in bulk. 40pcs per tube is the standard pack size for this product. Orders for partial quantities will receive either partial tubes or boxed products.

Product Description

The 3.3V GXO-U103H leaded oscillator features DIL-8 package and is available over a very wide frequency range of 125kHz ~ 200MHz with good frequency stability options and up to 30pF high drive capability. This oscillator also features enable/disable tristate functionality.

The GXO-U101H is optionally available with -40 to +85°C industrial temperature range.

Specifications
Frequency range 125kHz ~ 200MHz
Dimensions 13.0 x 13.0 x 5.7mm
Package style 8 pin DIL (half size)
Storage temperature range -55 to +125°C
Supply voltage (VDD) +3.3V (±5%)
Supply current 10mA max (125kHz ~ 0.99MHz)
15mA max (1.0 ~ 5.0MHz)
20mA max (>5.0 ~ 24.0MHz)
25mA max (>24.0 ~ 70.0MHz)
35mA max (>70.0 ~ 90.0MHz)
45mA max (>90.0 ~ 160MHz)
Driving ability 30pF CMOS / 5 LSTTL
Output voltage ‘0’ level = 0.4V max
‘1’ level = 90% VDD min
Start up time 10ms max
Rise / fall time 6ns max (<80.0MHz)
5ns max (>80.0MHz)
Waveform symmetry @ 50% VDD 45:55 max (<50.0MHz)
40:60 max (>50.0MHz)
Enable / disable function Tristate (control via pin 1)
Output enable/disable time 100ns / 100ns typ

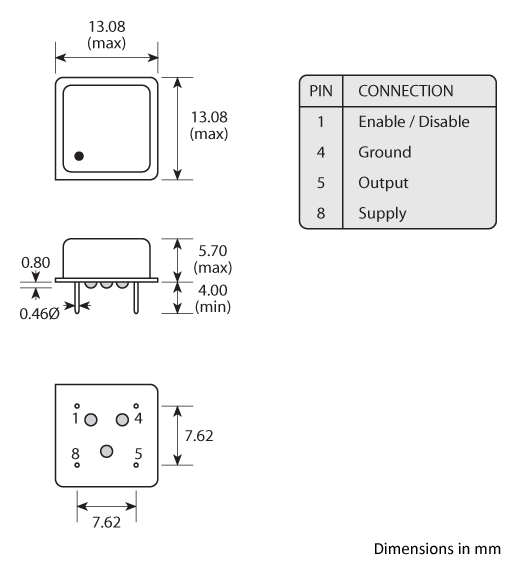

Package Drawing
3 pin DIL leaded Golledge oscillator package with enable disable function drawing.
Ordering Information

To request a quotation for the GXO-U103H please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pin 1)Output (pin 5)
Open Enabled
'1' level Enabled
'0' level High Impedance
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Resistance weld

Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
