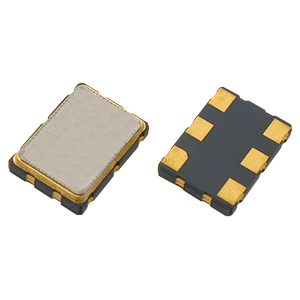

6-pad 7050 Golledge Oscillator

GXO-E72J

2.5V Oscillator with LV-PECL Output and Low Phase Jitter

  • Differential LV-PECL outputs
  • Low phase jitter
  • Enable / disable tristate function
  • Fast rise / fall times
  • Designed for SONET, SDH, IEEE1394 etc
Configurable Options
ParameterOption Code
Frequency
Frequency stability
* see note below
B
A
Operating temperature range
I
Enable / disable function
N

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply voltage change and load change.

Quantity / Special Request

Please specify the quantity you require below.

The GXO-E72J is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Available over a wide frequency range of 40.0~200MHz, the GXO-E72J produces differential LV-PECL outputs with low phase jitter of 0.3ps typical (12kHz - 20MHz).

The GXO-E72J requires 2.5V supply voltage and features industry standard 7.0 x 5.0mm ceramic package with metal lid and gold plated pads.

Specifications
Frequency range 40.0 ~ 200MHz
Dimensions 7.0 x 5.0 x 1.65mm
Storage temperature range -40 to +85°C
Supply voltage (VDD) +2.5V (±5%)
Supply current 90mA max, 60mA typ
Output Complementary LV-PECL
Output load 50Ω (into VDD-2V)
Logic levels ‘0’ level = 1.195V max
‘1’ level = 1.415V min
Start up time 10ms max
Waveform symmetry 40:60 max @ 50%VP-P
Rise / fall time 1.0ns max (20 ~ 80%VP-P)
Output enable / disable time 2ms / 200ns max
Stand-by current 30µA max
Phase jitter RMS 1ps max (0.3ps typ), 12kHz~20MHz
Ageing ±5ppm max, 1st year
Package Drawing
Package footprint and pad configuration drawing for 6-pad 7050 Golledge Oscillators
Ordering Information

To request a quotation for the GXO-E72J please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GXO-E72J is included in the following design libraries. Click to download the library of your choice.

Enable / Disable Function
Input (pad 1)Output 1 (pad 4)Output 2 (pad 5)
Open Enabled Enabled
'1' level (≥0.7 VDD) Enabled Enabled
'0' level (≤0.3 VDD) High Impedanceive High Impedance
Marking
Marking
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 160mg
