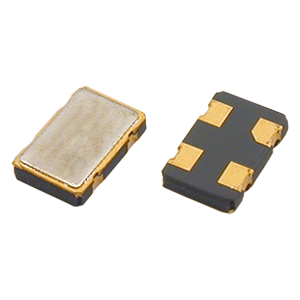

4-pad 5x3 clock oscillator

GXO-5351

5V SM Oscillator with Tight Stability

  • Standard frequencies held in stock
  • Enable / disable tristate function
  • Competitive pricing
Configurable Options
ParameterOption Code
Frequency
Frequency stability
B
A
Operating temperature range
I
Enable / disable function
N
Quantity / Special Request

Please specify the quantity you require below.

The GXO-5351 is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

With industry standard 5032 package, the GXO-5351 oscillator offers a wide choice of possible frequencies (500kHz ~ 110MHz) and features a range of temperature stability and other specification options. This oscillator is competitively priced for large commercial applications.

The GXO-5351 is available with -40 to +85°C optional operating temperature range, and has frequency stability options as tight as ±25ppm.

This oscillator features enable/disable tristate functionality as standard and is competitively priced for larger scale commercial projects.

Specifications
Frequency range 0.5 ~ 110.0MHz
Dimensions 5.0 x 3.2 x 1.0mm
Storage temperature range -55 to +125°C
Supply voltage (VDD) +5.0V (±5%)
Supply current 10mA max (0.5 ~ 14.9MHz)
15mA max (15.0 ~ 29.9MHz)
20mA max (30.0 ~ 39.9MHz)
25mA max (40.0 ~ 49.9MHz)
30mA max (50.0 ~ 59.9MHz)
40mA max (60.0 ~ 79.9MHz)
50mA max (80.0 ~ 110.0MHz)
Logic levels ‘0’ level = 10%VDD max
‘1’ level = 90%VDD min
Start up time 10ms max
Waveform symmetry 40:60 max
Driving ability
* see note below
15pF CMOS
Rise / fall time 10ns max
7ns max (>40.0MHz)

* Will drive up to 30pF, but figures for rise/fall and supply current may vary from those shown. For details, contact our sales office.

Package Drawing
Package footprint and pad configuration drawing for a 5.0x3.2mm  Golledge Oscillator showing full dimensions.
Ordering Information

To request a quotation for the GXO-5351 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GXO-5351 is included in the following design libraries. Click to download the library of your choice.

Enable / Disable Function
Input (pad 1)Output (pad 3)
Open Enabled
'1' level Enabled
'0' level High Impedance
Tape & Reel Specification
Tape and Reel specifications

A:178 B:12 C:5.3 D:3.5 E:8 F:1.5 G:62 H:21

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base with metal lid

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
