1.8V SM Oscillator with Low Current Consumption

  • Low current consumption
  • Miniature ceramic package with metal lid
  • Enable / disable tristate function
  • Competitive pricing
Configurable Options
ParameterOption Code
Frequency stability
* see note below
Operating temperature range

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply, voltage change, load change, shock and vibration.

Quantity / Special Request

Please specify the quantity you require below.

The GXO-3301G is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GXO-3301G oscillator is available with 1.8V supply voltage over frequency range 0.625 ~ 50.0MHz. This oscillator features low current consumption as standard. In addition, the rise/fall time of the GXO-3301G is fast at 10ms maximum, and the period jitter and phase jitter performance of this oscillator are both excellent.

The GXO-3301G has enable/disable tristate functionality and comes encased within a 3.2 x 2.5mm package.

If you require an oscillator with similar specifications at a higher frequency (up to 170 MHz) then please consider the GXO-U119G here.

Frequency range 0.625 ~ 50.0MHz
Dimensions 3.2 x 2.5 x 1.0mm
Storage temperature range -55 to +100°C
Supply voltage (VDD) +1.8V (±5%)
Supply current 2.5mA max (≤30.0MHz)
3.0mA max (>30.0MHz - 40.0MHz)
3.5mA max (>40.0MHz - 50.0MHz)
Logic levels ‘0’ level = 10%VDD max
‘1’ level = 90%VDD min
Start up time 10ms max
Waveform symmetry 40:60 @ 50%VDD
Driving ability 15pF CMOS
Rise / fall time 10ns max
Enable / disable function Tristate (control via pad 1)
(E/D times 10ms / 50ns)
Period jitter RMS 5ps max
Phase jitter RMS 1ps max, 12kHz~20MHz
Ageing ±5ppm / year max
Net mass 22.4mg

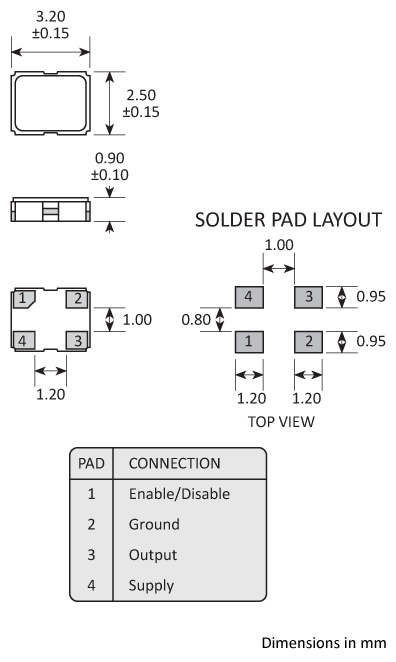

Package Drawing
