Golledge 2.5x2.0mm 4-pad oscillator

GXO-3201L

2.5-3.3V SM Oscillator with Low Current Consumption

  • Low current consumption
  • Enable / disable tristate function
  • Miniature ceramic package with metal lid
  • Competitive pricing
Configurable Options
ParameterOption Code
Frequency
Frequency stability
* see note below
B
E
A
Operating temperature range
I

Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply voltage change, load change, shock and vibration

Quantity / Special Request

Please specify the quantity you require below.

The GXO-3201L is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The ultra-miniature oscillator GXO-3201L is available from low frequencies of 0.75MHz with industrial operating temperature range and tight stability options.

This oscillator is operable at any voltage from 2.5-3.3V and features low current consumption and fast start up time.

The GXO-3201L comes with enable/disable functionality as standard and has excellent period jitter performance of 5ps maximum, and low phase jitter of just 1ps maximum (12kHz - 20MHz).

Specifications
Frequency range 0.75 ~ 50.0MHz
Dimensions 2.5 x 2.0 x 0.9mm
Storage temperature range -55 to +100°C
Supply voltage (VDD) +2.5V ~ 3.3V (±5%)
Supply current
* see note below
5.5mA max (≤20.0MHz)
6.5mA max (>20.0 ~ 40.0MHz)
7.5mA max (>40.0 ~ 50.0MHz)
Logic levels ‘0’ level = 10%VDD max
‘1’ level = 90%VDD min
Start up time 10ms max
Waveform symmetry 45:55 @ 50%VDD
Driving ability 15pF CMOS
Rise / fall time 10ns max
Enable / disable function Tristate (control via pad 1)
E/D times 10ms / 200ns
Period jitter RMS 5ps max
Phase jitter RMS 1ps max, 12kHz~20MHz
Ageing ±5ppm / year max

* GXO-3201L will operate within specification on any supply voltage from +2.5V to +3.3V. Supply current will vary with supply voltage. Figures shown are for 3.0V supply.

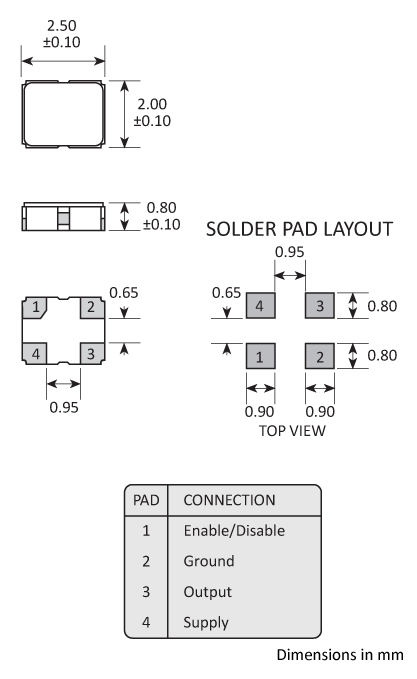

Package Drawing
Golledge 2.5x2.0mm SM oscillator package
Ordering Information

To request a quotation for the GXO-3201L please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GXO-3201L is included in the following design libraries. Click to download the library of your choice.

Enable / Disable Function
Input (pad 1)Output (pad 3)
Open Enabled
'1' level Enabled
'0' level High Impedance
Marking
Marking
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 18mg
