Golledge 6x2mm cylinder thru-hole crystal package

GWX-26

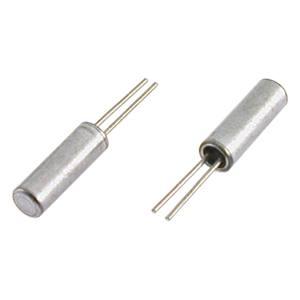

2x6mm Cylindrical Watch Crystal

  • Low cost
  • Range of tolerances
  • Excellent ageing characteristics
  • Miniature size for high density applications
  • Large stocks of popular specifications
Configurable Options
ParameterOption Code
Calibration tolerance
B
D
Operating temperature range
I
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The GWX-26 is supplied in bulk. 1k pcs per bag is the maximum bag size for this product.

Product Description

The GWX-26 32.768kHz watch crystal features extremely competitive pricing for high volume commercial projects, and is ideal for applications expected to reach high commercial numbers.

This leaded crystal features an ultra-miniature footprint of 1.9mm diameter, allowing for high density boards. This crystal also features a range of configurable calibration tolerances and circuit conditions, and has excellent ageing characteristics of just ±3ppm maximum.

Specifications
Frequency 32.768kHz
Dimensions ⌀1.9 X 6.0
Package 2.0 x 6.0mm cylinder
Storage temperature range -40 to +85°C
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.034ppm±0.006/°C2 typ
Static capacitance (C0) 1.20pF typ
Equivalent series resistance 35kΩ max
70kΩ max (option I)
Ageing (first year) ±3ppm max
Drive level 1.0µW max

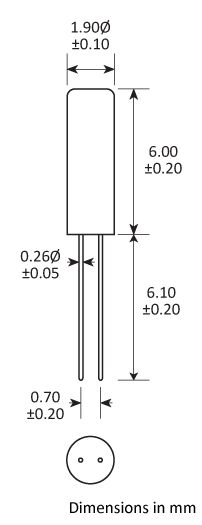

Package Drawing
Golledge 2x6 cylinder crystal package
Ordering Information

To request a quotation for the GWX-26 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GWX-26 is included in the following design libraries. Click to download the library of your choice.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Press seal

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
