The package construction and pad configuration of the DIL-8 package

GVXO-41H

5V VCXO in half size 8 pin DIL package

  • Low cost for volume applications
  • Choice of pullability & stability options
  • Industrial operating temperature range available
Configurable Options
ParameterOption Code
Frequency
Frequency pullability
N
S
W
Frequency stability
A
B
C
D
E
Operating temperature range
I
Quantity / Special Request

Please specify the quantity you require below.

The GVXO-41H is supplied in bulk. 40pcs per tube is the standard pack size for this product. Orders for partial quantities will receive either partial tubes or boxed products.

Product Description

Encased within a half-size leaded 8 pin DIL package, the GVXO-41H features stand-out frequency pullability of ±200ppm.

An excellent option for applications which require low-cost leaded components, the GVXO-41H features 5.0V operating supply voltage and is available in a wide range of frequency stability options as tight as ±15ppm. Industrial operating temperature range is also available.

Specifications
Frequency range 1.544 ~ 30.0MHz
Dimensions 13.08 x 13.08 x 5.70mm
Package 8 pin DIL (half size)
Voltage control +2.5V ±2.5V, 10% linearity
>100kΩ input impedance
Ageing ±5.0ppm max per year
Storage temperature range -55 to +125°C
Supply voltage (VDD) +5.0V (±5%)
Supply current 20mA max (<20.0MHz)
30mA max (20.0 ~ 33.0MHz)
Driving ability 30pF CMOS
5 LSTTL
Logic levels ‘0’ level = +0.4V max
‘1’ level = 90%VDD min
Waveform symmetry @ 50%VDD 40:60 max
Rise / fall time 6ns max (0.4V ~ 90%VDD min)

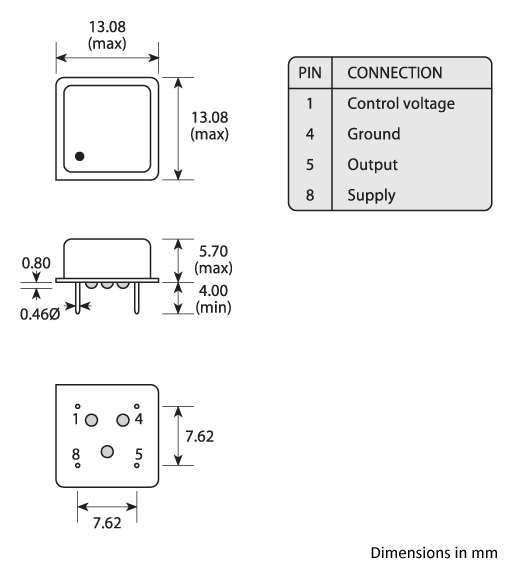

Package Drawing
Package footprint and pad configuration drawing for the Golledge GVXO-43H VCXO showing full dimensions.
Ordering Information

To request a quotation for the GVXO-41H please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Once we've received your request our expert team will then produce a quotation tailored to meet your needs using the option codes you've selected.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Resistance weld

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
