GVXO-338G

GVXO-338G

CMOS 1.8V surface mount VCXO with low current consumption

  • Low current consumption
  • 1.8V supply
  • Miniature SM package
  • Competitive pricing
Configurable Options
ParameterOption Code
Frequency
Frequency pullability
R
Frequency stability
* see note below
B
C
Operating temperature range
I

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply voltage change, load change and ageing, with VCTL = 50%VDD

Quantity / Special Request

Please specify the quantity you require below.

The GVXO-338G is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GVXO-338G ultra-miniature voltage controlled oscillator is available from frequencies as low as 1.250MHz and up to 100MHz. This VCXO features low supply voltage of 1.8V and standard 15pF CMOS driving ability, with an ultra-low supply current requirement of only 3mA and a wide voltage control range of 0.9V ±0.85V with 10% linearity to produce wide frequency pullability of ±90ppm min. For more information about the GVXO-338G speak to a member of our expert team on +44 1460 256 100. Alternatively email your request to sales@golledge.com for a fast query resolution.

Specifications
Frequency range 1.250 ~ 100.0MHz
Dimensions 3.2 x 2.5 x 1.15mm
Voltage control +0.9V ±0.85V, 10% linearity
Storage temperature range -40 to +85°C
Supply voltage (VDD) +1.8V (±5%)
Supply current 3mA max
Driving ability 15pF CMOS
Logic levels ‘0’ level = 10%VDD max
‘1’ level = 90%VDD min
Waveform symmetry 40:60 max @ 50%VDD
Rise / fall time (20%~80%VDD) 5ns max
Start up time 10ms max

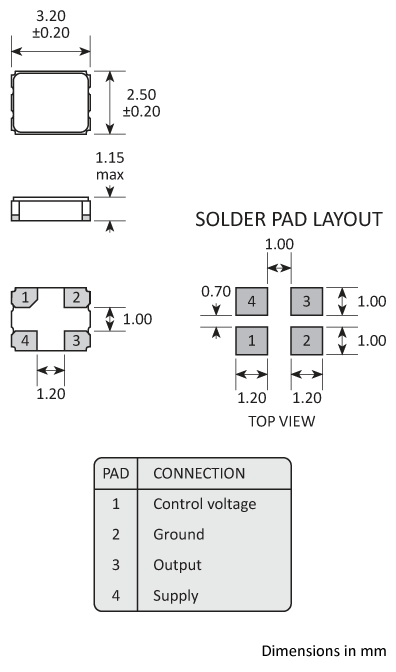

Package Drawing
Footprint
Ordering Information

To request a quotation for the GVXO-338G please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Once we've received your request our expert team will then produce a quotation tailored to meet your needs using the option codes you've selected.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Marking
Marking
Marking
Soldering Profile
Soldering Profile

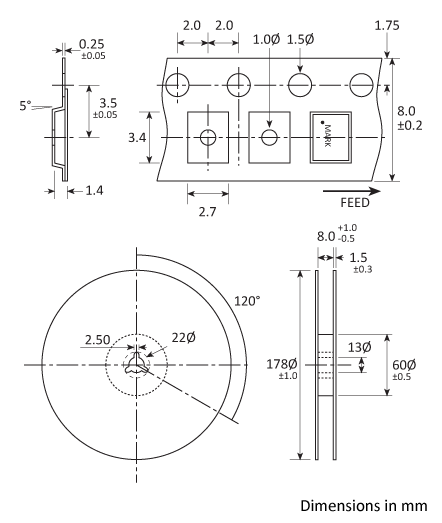

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid
  • Seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 27mg
