8-pad compact high-precision TCXO package


Sinewave TCXO Voltage Control High Precision Low g-Sensitivity Low Phase Noise

  • High Precision <±0.1ppm
  • Low g-Sensitivity <0.3ppb/g
  • Stratum 3
  • Clipped sine output
  • Miniature SM package
Configurable Options
ParameterOption Code
Frequency stability
Temperature range
Supply voltage (VDD)
Quantity / Special Request

Please specify the quantity you require below.

The GTXO-99V is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Frequency range 5.0 ~ 52.0MHz
Dimensions 3.2 x 2.5 x 1.58
Storage temperature range -55 to +125°C
Supply current 5.0mA max
Output waveform Clipped sine, 0.8V p-p, +DC offset
Load (ZL) 10kΩ // 10pF
Start up time 5ms max
Frequency adjustment ±5ppm, +1.5V ±1.0V
Phase noise (typ @ 10.0MHz) -130dBc/Hz @ 100Hz
-145dBc/Hz @ 1kHz
-154dBc/Hz @ 10kHz
g-Sensitivity 0.3ppb/g typ., 0.5ppb/g max.
Frequency stability over 20 years
*1 see note below
±4.6ppm max
Holdover stability
*2 see note below

*1 Stability is inclusive of calibration @25°C, reflow, supply voltage and load variation, 20 years ageing and frequency stability over temperature

*2 Holdover stability is inclusive of frequency stability over temperature, supply voltage variation, and 24 hour ageing

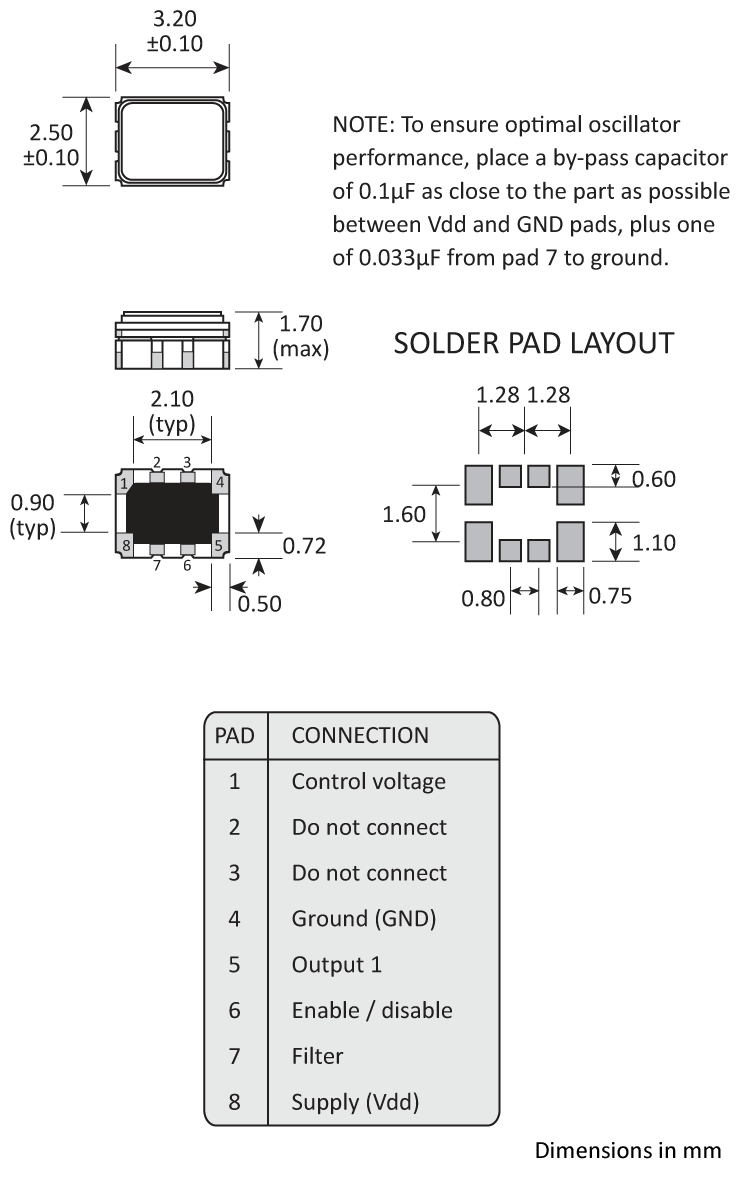

Package Drawing
