4-pad 3225 TCXO

GTXO-94N

3.0V 32.768kHz CMOS TCXO

  • 32.768kHz
  • Extremely low current consumption of 1.25µA
  • ±5ppm frequency stability
  • 3.0V supply
  • Ideal for RTC reference, smart metering, data logging etc
Configurable Options
ParameterOption Code

The GTXO-94N has no configurable options.
Please see the specifications table for more details or contact our team today if you have other specification requirements.

Quantity / Special Request

Please specify the quantity you require below.

The GTXO-94N is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

If you're looking for an RTC reference or need an extremely stable 32.768kHz output, you should consider the GTXO-94N.

The GTXO-94N provides extremely stable 3.0V CMOS output, with tight stability of just ±5ppm, making this TCXO ideal for use as an RTC reference where extremely accurate timing is needed.

This temperature compensated oscillator also has low power consumption of just 1.25µA, making the GTXO-94N ideal for use in any portable devices, including data loggers, and battery-operated devices such as smart meters. Find accurate pricing and availability information by submitting a quotation request now or calling a member of our expert team on +44 (0)1460 256 100 today.

Specifications
Frequency 32.768kHz
Dimensions 3.3 x 2.6 x 1.27mm
Calibration tolerance ±1.5ppm max @ 25°C ±3°C
Operating temperature range -40 to +85°C
Temperature stability ±5.0ppm max
Storage temperature range -55 to +85°C
Supply voltage (VDD) 3.0V (±5%)
Supply current 1.25µA typ, 2.0µA max (no load)
Driving ability 15pF CMOS
Logic levels ‘0’ level = 0.4V max
‘1’ level = VDD-0.4V min
Waveform symmetry 40:60 @ 50%VDD typ
Rise / fall time 100ns max
Frequency vs load ±0.2ppm max
Frequency vs supply ±0.2ppm max, VDD±5%
±1.0ppm/V max
Start up time 1s max @ 25°C, 3s max over -40 to +85°C
Ageing ±3.0ppm max 1st year
Reflow ±1.0ppm max @25°C, 24hrs after reflow
Timing error ±0.432s max/day
±12.96s max/month
±2.628mins max/year

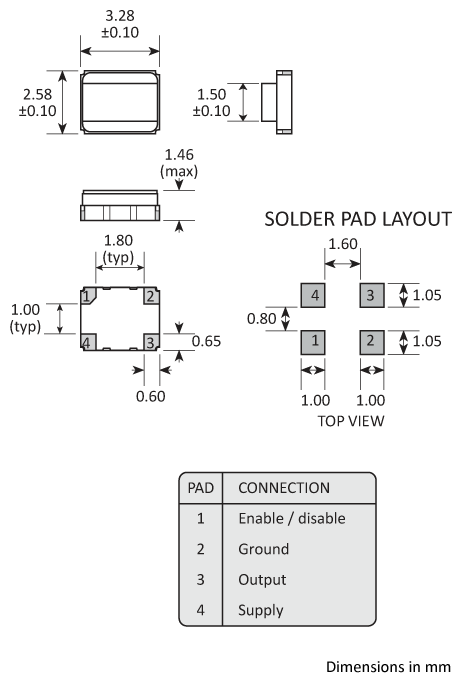

Package Drawing
Footprint
Ordering Information

To request a quotation for the GTXO-94N please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 1)Output (pad 3)
'0' level VIL=20%VDD max Disabled
'1' level VIH=80%VDD mIN Enabled

Pad 1 should not be allowed to float

Marking
Marking
Soldering Profile
Solder reflow profile
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic body with gold-plated pads
Metal lid, seam sealed

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
