GTXO-93V | 1.8V ~ 3.6V SM VCTCXO for GPS

Configurable Options
Frequency
kHz MHz GHz
Frequency stability
Any
±2.5ppm max	J
±2.0ppm max	H
±1.5ppm max	G
±0.5ppm max	E
Temperature range
Any
0 to +50°C	R
-10 to +60°C	C
-20 to +75°C	N
-30 to +85°C	S
-40 to +85°C	I
Supply voltage (V_DD)
Any
+1.8V	G
+2.3V ~ +3.6V

Product Description

With exceptional stability performance of up to ±0.5ppm, the GTXO-93V temperature compensated oscillator features analogue compensation to ensure a smooth output, perfect for applications which involve varying temperature environments.

With additional voltage control allowing the engineer a further degree of output control, the GTXO-93V is perfect for applications requiring highly precise signals such as GPS. The miniature surface mount package with 3.2 x 2.5mm footprint and height of only 1.2mm means this versatile component is small enough to used in a wide range of applications and low power consumption of only 2mA maximum lessen the impact of component design in.

Specifications

Frequency range	10.0 ~ 52.0MHz
Dimensions	3.2 x 2.5 x 1.2mm
Storage temperature range	-40 to +85°C
Supply voltage stability	±0.2ppm, V_DD ±5%
Load stability	±0.2ppm, Z_L ±10%
Frequency slope	±0.05ppm/°C over -30+85°C
Ageing	±1.0ppm max first year
Supply current	1.5~2.0mA max
Output waveform	Clipped sine, 0.8V p-p, +DC offset
Test load (Z_L)	10kΩ // 10pF
Start up time	3ms max
Frequency adjustment	±8ppm ~ ±14ppm, 1.5 ±1.0V ±8ppm min, +0.9 ±0.9V (V_DD=1.8V)
Harmonics	-5dBc max
Frequency tolerance @ 25°C	±2.0ppm max, 60mins after reflow
Net mass	33.2mg

Package Drawing

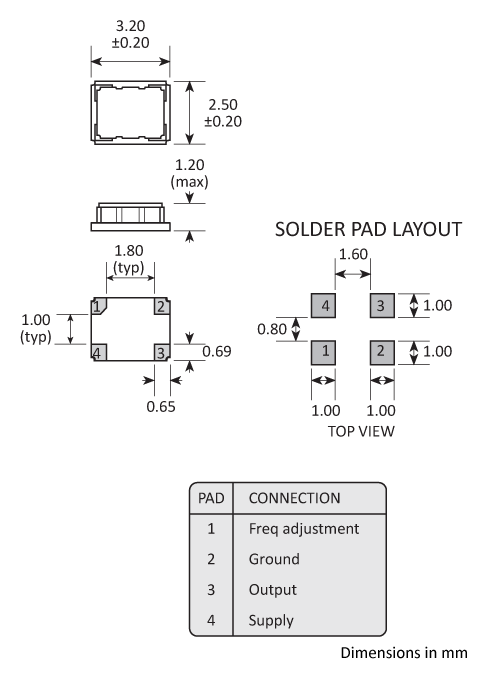

Package footprint and pad configuration drawing for the Golledge GTXO-93V TCXO showing full dimensions.

Ordering Information

To request a quotation for the GTXO-93V please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
