5V SM VCTCXO with ±10.0ppm Stability and ±60ppm Pullability
- Wide voltage control range of ±60ppm
- 2.0mm maximum height
- Good frequency stability of ±10.0ppm
10.0 ~ 22.0MHz

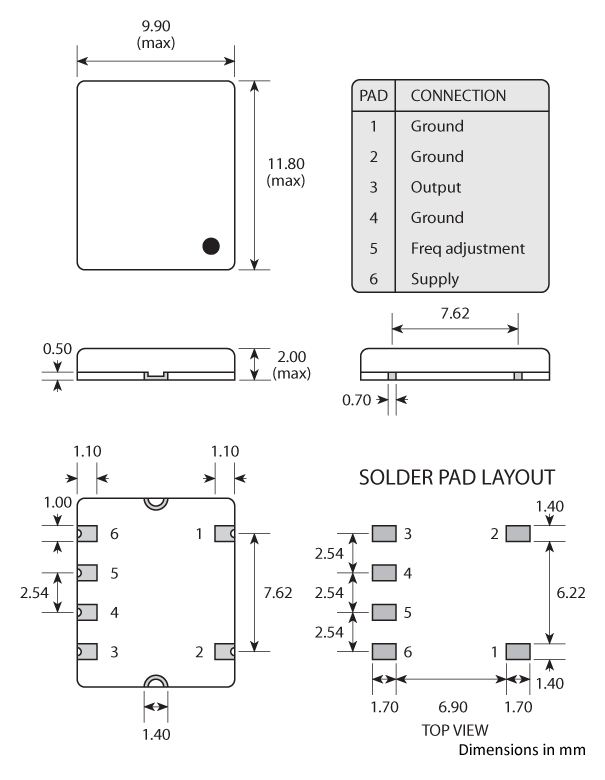

11.8 x 9.9 x 2.0mm
|Storage temperature range||
-30 to +85°C
|Frequency vs supply voltage||
±0.3ppm max (5V±5%)
±3.0ppm per year
|Supply voltage (VDD)||
2.0mA max (Sine output)
15.0mA max (CMOS output)
±10ppm / +25°C ±2°C
To request a quotation for the GTXO-576C please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at firstname.lastname@example.org.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
PCB base with metal lid
