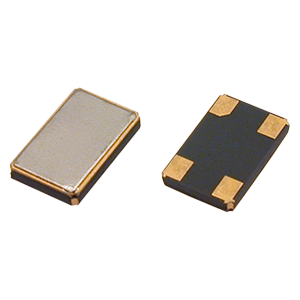

4-pad 5x3 crystal

GSX-533

5.0 x 3.2mm SM Crystal for Bluetooth / Wireless

  • Good frequency perturbation
  • Metal lid can be grounded to minimise EMI
  • Seam seal for excellent long-term stability
  • Tight specifications available
  • Ultra-miniature for maximum space saving
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
2
3
Temperature stability
1
2
3
Operating temperature range
1
2
3
4
Circuit condition
N
B
D
Oscillation mode
F
3
Quantity / Special Request

Please specify the quantity you require below.

The GSX-533 is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-533 is available at high frequencies from 8.0 ~ 160MHz and features a miniature ceramic package measuring 5.0 x 3.2 x 0.9mm, with metal lid which can be grounded for EMI minimization.

The GSX-533 features a range of tight calibration tolerances and temperature stabilities, including as good as ±10ppm. This surface mount crystal also offers a range of operating temperature ranges, circuit conditions, excellent ageing characteristics, and low drive level.

Specifications
Frequency range 8.0 ~ 54.0MHz
(54.0 ~ 160MHz, 3rd OT under dev)
Dimensions 5.0 x 3.2 x 0.9mm
Operating temperature range -10 to +60°C
Storage temperature range -40 to +85°C
Equivalent series resistance (max) 100Ω (8.0 ~ 11.99MHz) ..
60Ω (12.0 ~ 13.99MHz) ..
50Ω (14.0 ~ 15.99MHz) ..
40Ω (16.0 ~ 54.0MHz)
Perturbations ±1ppm max
Ageing ±1ppm max first year
Test drive level 10µW
Soldering condition 260°C, 10 sec x2 max

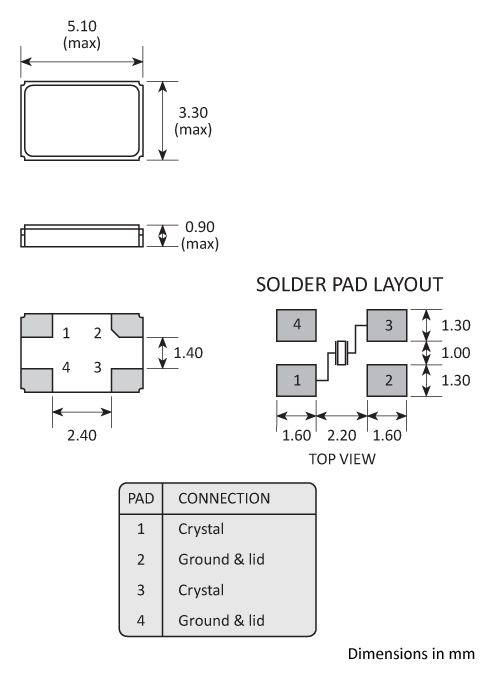

Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-533 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-533 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GSX-533 is included in the following design libraries. Click to download the library of your choice.

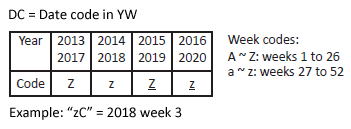

Marking
Marking
Marking
Soldering Profile
Solder reflow profile

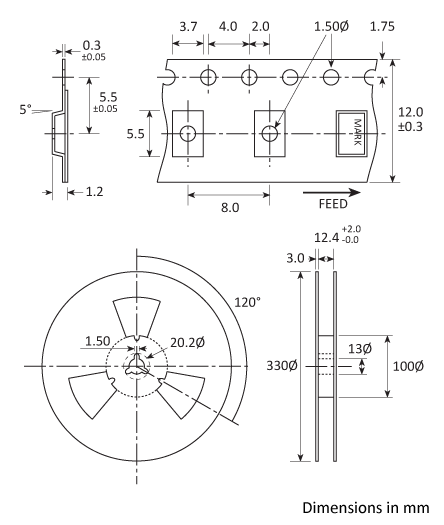

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration

Nominal Net Mass Nominal Net Mass: 43mg
