Golledge 4-pad 2016 0.6mm high crystal package

GSX-223

Ultra-miniature SM Crystal

  • Ultra-miniature for maximum space saving
  • Ideal for wireless & mobile applications
  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent long-term stability
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
P
3
Temperature stability
1
P
2
3
Operating temperature range
1
2
3
Circuit condition
M
N
A
S
Oscillation mode
F
Quantity / Special Request

Please specify the quantity you require below.

The GSX-223 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

Offering tight stability and high reliability due to it's seam sealed package, and tight calibration tolerance and temperature stability options, the GSX-223 is ideal for new designs requiring an ultra-miniature crystal footprint.

The GSX-223 is available over frequency range 16.0 ~ 50.0MHz, and offers tight temperature stability options and excellent ageing characteristics of only ±1ppm max first year ageing.

If you need a more competitive crystal with similar specifications but available up to 56.0MHz please consider the GSX-221.

Specifications
Frequency range 16.0 ~ 50.0MHz
Dimensions 2.05 x 1.65 x 0.6mm
Storage temperature range -40 to +85°C
Equivalent series resistance 150Ω max (16.0 ~ 23.99MHz)
100Ω max (24.0 ~ 35.99MHz)
60Ω max (36.0 ~ 50.0MHz)
Ageing ±1ppm max first year
Test drive level 10µW typ, 100µW max
Soldering condition 260°C, 10 sec x2 max

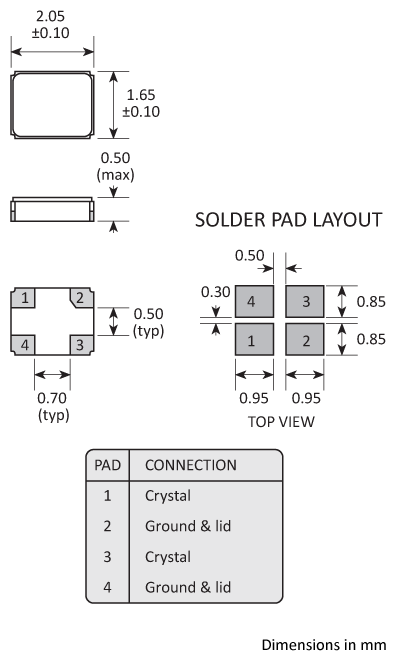

Package Drawing
Package footprint and pad configuration drawing for the Golledge GSX-223 Crystal showing full dimensions.
Ordering Information

To request a quotation for the GSX-223 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GSX-223 is included in the following design libraries. Click to download the library of your choice.

Applications

Our crystals and oscillators are regularly supplied for use with industry-leading ICs, from world-leading manufacturers including:

  • Analogue Devices
  • Atmel (Microchip Technology Inc.)
  • Broadcom
  • Dialog Semiconductor PLC
  • Intel
  • Nordic Semiconductor
  • NXP Semiconductors
  • Qualcomm (and CSR)
  • Silicon Labs
  • STMicroelectronics
  • Texas Instruments (TI)
  • Xilinx
  • and more...

If you'd like more information about chipset compatibility please get in touch with our team here.

Marking
Marking
Soldering Profile
Solder reflow profile

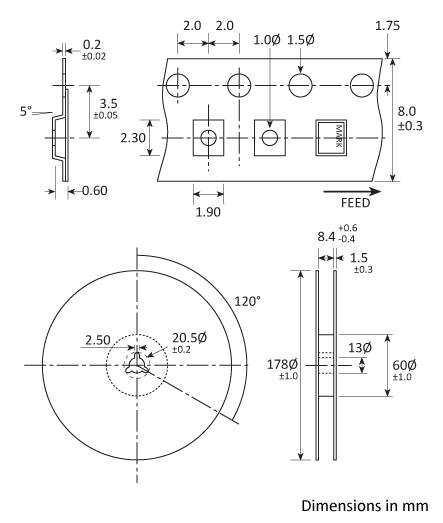

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic body with gold-plated pads Metal lid, seam sealed

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
