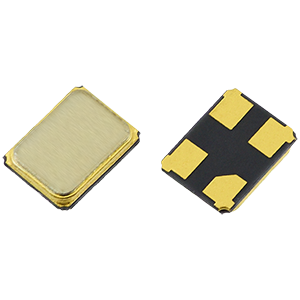

4-pad 0.35mm high crystal package

GSX-213

Ultra-miniature SM Crystal for NFC, Smartcard etc

  • Ultra-miniature for maximum space saving
  • Ideal for near field communications (NFC), smartcard, wireless & mobile
  • Metal lid can be grounded to minimise EMI
  • Seam sealed for excellent long-term stability
  • Excellent ageing characteristics
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
1
P
3
Temperature stability
1
P
2
3
Operating temperature range
1
2
3
Circuit condition
R
M
N
A
S
Oscillation mode
F
Quantity / Special Request

Please specify the quantity you require below.

The GSX-213 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The smallest crystal in our key product range, available at frequencies of 26.0 ~ 60.MHz, the ultra-miniature ceramic package of the GSX-213 makes it ideal for space-dependent applications such as wearables, smartcard, NFC and Bluetooth.

The GSX-213 surface mount crystal features tiny 1.6 x 1.2 x 0.35mm seam sealed package with a standard four pad configuration. The seam seal of this package helps achieve excellent long-term stability, resulting in excellent ageing specifications of only ±1ppm maximum for the first year. The metal lid of the package can also be grounded for EMI reduction.

This surface mount crystal offers a range of circuit conditions and tight calibration tolerance and temperature stability options, over a choice of operating temperature ranges including -30 to +85°C.

For an alternative option with lower ESR at some frequencies, please consider the GSX-211 here.

Specifications
Frequency range 26.0 ~ 60.0MHz
Dimensions 1.65 x 1.25 x 0.40mm
Storage temperature range -40 to +85°C
Equivalent series resistance 200Ω max @ 26.0MHz
150Ω max @ 37.4MHz
100Ω max @ 38.4MHz
100Ω max @ 40.0MHz
Ageing ±1ppm max first year
Test drive level 100µW max
Soldering condition 260°C, 10 sec x2 max

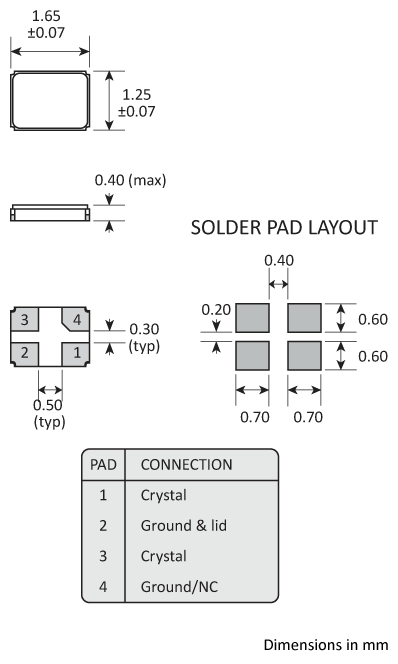

Package Drawing
Golledge 4-pad 1612 package
Ordering Information

To request a quotation for the GSX-213 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GSX-213 is included in the following design libraries. Click to download the library of your choice.

Applications

Our crystals and oscillators are regularly supplied for use with industry-leading ICs, from world-leading manufacturers including:

  • Analogue Devices
  • Atmel (Microchip Technology Inc.)
  • Broadcom
  • Dialog Semiconductor PLC
  • Intel
  • Nordic Semiconductor
  • NXP Semiconductors
  • Qualcomm (and CSR)
  • Silicon Labs
  • STMicroelectronics
  • Texas Instruments (TI)
  • Xilinx
  • and more...

If you'd like more information about chipset compatibility please get in touch with our team here.

Marking
Marking
Soldering Profile
Solder reflow profile

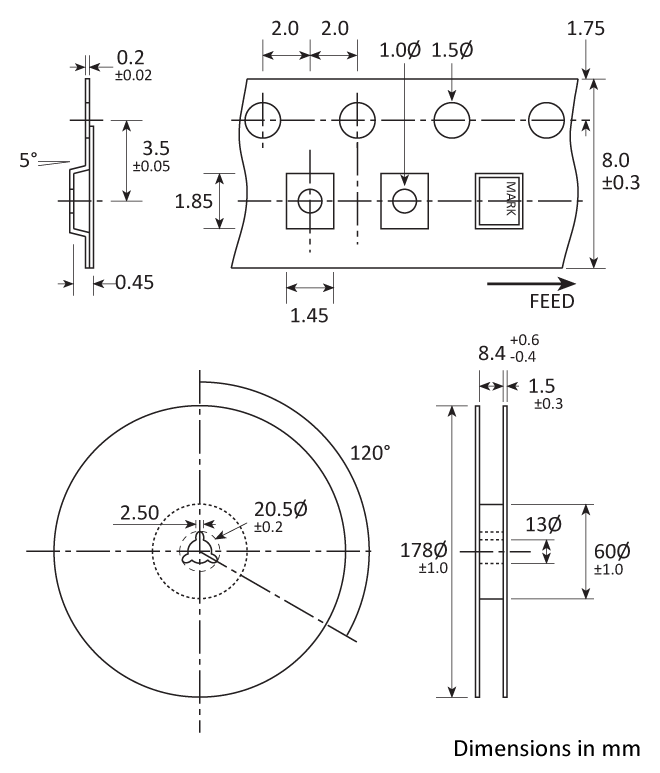

Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
