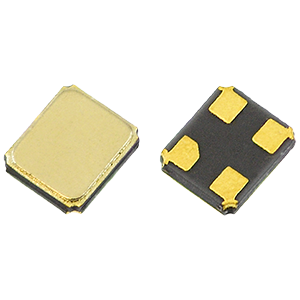

GSX-113 1.2 x 1.0 x 0.3 4pad crystal

GSX-113

Ultra miniature low profile SM Crystal

  • Fundamental mode up to 80.0MHz
  • Ultra-miniature for maximum space saving
  • Low profile and light weight for smart cards
  • Seam sealed for excellent long-term stability
  • Compatible with latest ASIC designs
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Calibration tolerance
L
1
2
3
Temperature stability
1
P
2
3
Operating temperature range
2
3
4
Circuit condition
R
T
M
A
B
Oscillation mode
F

* ±5ppm calibration tolerance may not be available at certain frequencies. Check with our sales office before ordering

Quantity / Special Request

Please specify the quantity you require below.

The GSX-113 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSX-113 ultra miniature 1.2 x 1.0mm crystal is available in fundamental mode up to 80MHz. This crystal is fully compatible with the latest ASIC designs and also features a low profile and low net weight, perfect for ultra-miniature or close-stacking applications.

Available from 32.0 ~ 80.0MHz in fundamental mode for excellent stability characteristics, the GSX-113 includes ±5ppm calibration tolerance option, excellent temperature stability options including ±10ppm, and is available at a range of operating temperature ranges including -40 to +85°C.

The GSX-113 also features low ESR characteristics to ensure full compatibility with latest generation ASICs.

Specifications
Frequency range 32.0 ~ 80.0MHz
Dimensions 1.25 x 1.05 x 0.35mm
Storage temperature range -40 to +125°C
Equivalent series resistance 120Ω max @ 32.0MHz
100Ω max @ 40.0MHz
60Ω max @ 48.0MHz
40Ω max @ 76.8MHz
Ageing ±1ppm max first year
Test drive level 10µW
Soldering condition 260°C, 10 sec x2 max
Net mass 1.69mg

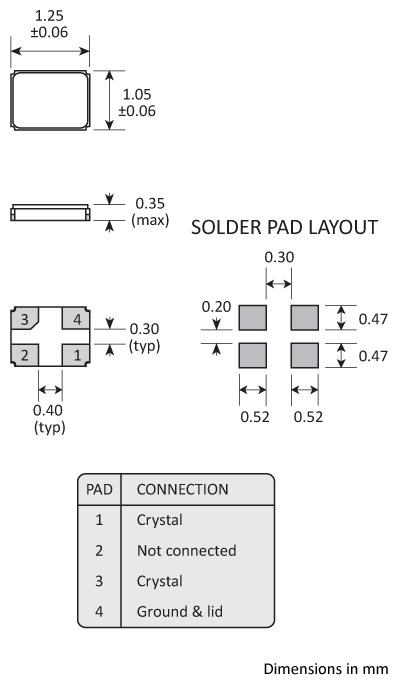

Package Drawing
Footprint
Ordering Information

To request a quotation for the GSX-113 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Applications

Our crystals and oscillators are regularly supplied for use with industry-leading ICs, from world-leading manufacturers including:

  • Analogue Devices
  • Atmel (Microchip Technology Inc.)
  • Broadcom
  • Dialog Semiconductor PLC
  • Intel
  • Nordic Semiconductor
  • NXP Semiconductors
  • Qualcomm (and CSR)
  • Silicon Labs
  • STMicroelectronics
  • Texas Instruments (TI)
  • Xilinx
  • and more...

If you'd like more information about chipset compatibility please get in touch with our team here.

Marking
Marking
Soldering Profile
Solder reflow profile for the GTXO-C77V

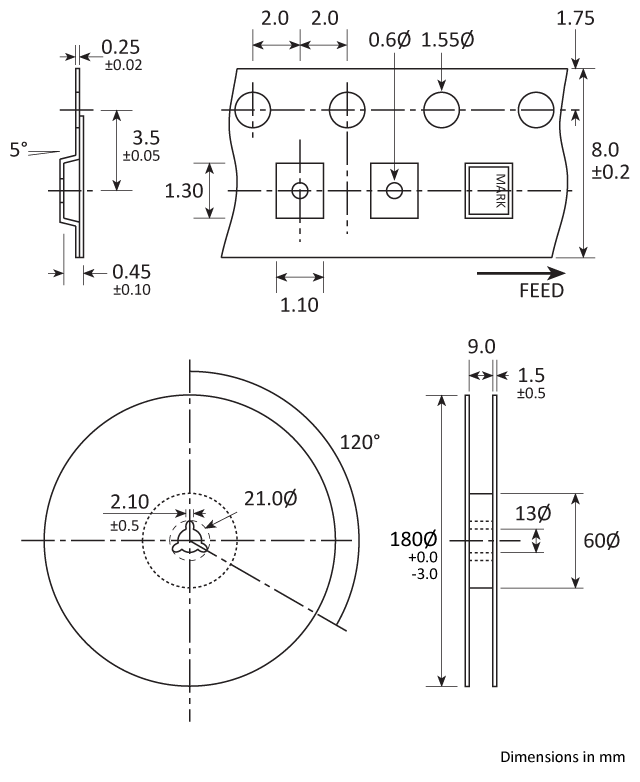

Tape & Reel Specification
Tape & Reel Specification
Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Compliance

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
