GSF-75 50R9B 50MHz 4 pole crystal filter with 9.0kHz 3dB bandwidth
- 4 pole filter in one package
- Frequencies from 21.40 ~ 75.0MHz available
- Custom specifications available

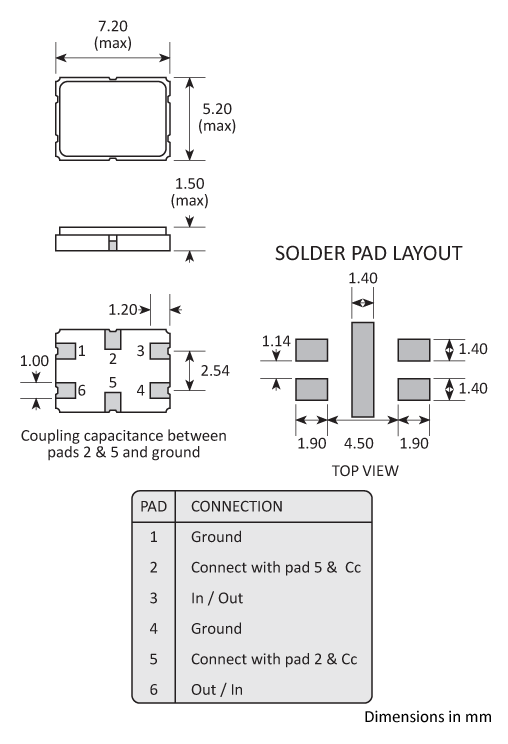

- Miniature SM package
7.2 x 5.2 x 1.5mm
|Operating temperature range||
-20 to +75°C
|Number of poles||
-3dB @ ±4.5kHz min
-13dB @ ±12.5kHz max
-70dB max -5000kHz
450Ω // 3.5pF
|Coupling capacitance (CC)||
|Number of units||
To request a quotation for the GSF-75 50R9B please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at email@example.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Tape & Reel Specification
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
