21.4MHz 4 pole crystal filter with 12.0kHz 3dB bandwidth
- Custom Specifications available
- Miniature SM package

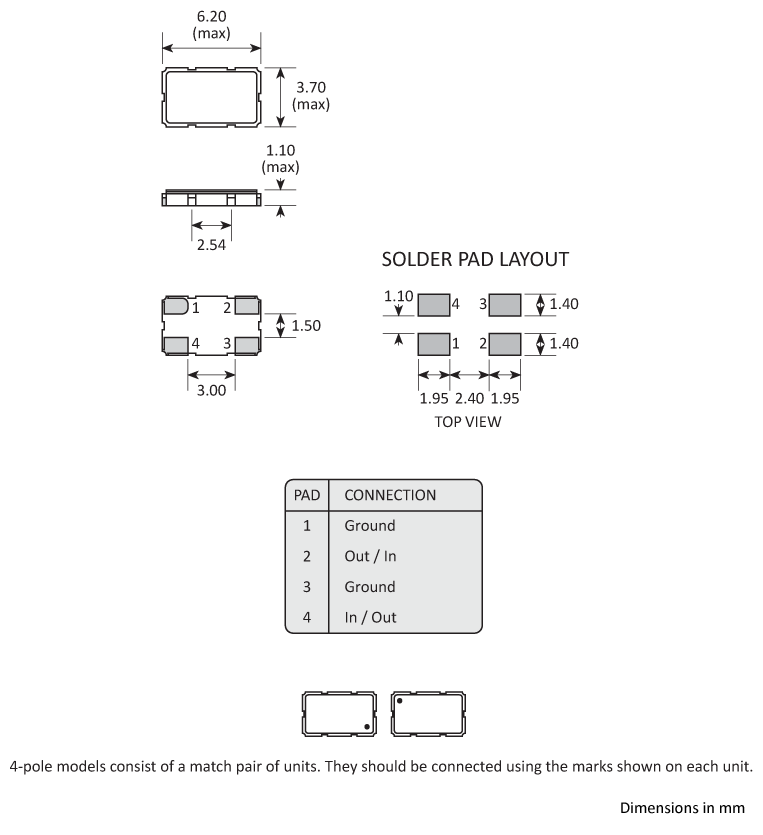

6.2 x 3.7 x 1.1mm
|Operating temperature range||
-20 to +70°C
|Number of poles||
-3dB @ ±6.0kHz min
-35dB @ ±20.0kHz max
-80dB max -910 ±10kHz
1200Ω // 1.5pF
|Coupling capacitance (CC)||
|Number of units||
To request a quotation for the GSF-61 21S12B please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at email@example.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Tape & Reel Specification
A:250 B:12.0 C:6.4 D:3.9 E:8 F:1.3 G:80 H:21
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
Ceramic base with metal lid
