GSF-61 21S12A 21.4MHz 2 pole crystal filter with 12.0kHz 3dB bandwidth

  • Custom Specifications available
  • Miniature SM package
Configurable Options
ParameterOption Code

The GSF-61 21S12A has no configurable options.
Please see the specifications table for more details or contact our team today if you have other specification requirements.

Quantity / Special Request

Please specify the quantity you require below.

The GSF-61 21S12A is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.
Product Description
The GSF-61 21S12A 2 pole crystal filter from Golledge with centre frequency of 21.4MHz features a 12kHz 3dB bandwidth and is available in multiple packages, including both UM-1 and UM-5 style leaded packages and UM-1J and UM-5J surface mount packages. This filter also features insertion loss of just 1.5dB dB. Find full specifications here.
Specifications
Centre frequency 21.4MHz
Dimensions 6.2 x 3.7 x 1.1mm
Operating temperature range -20 to +70°C
Number of poles 2
Pass band -3dB @ ±6.0kHz min
Attenuation band -18dB @ ±25.0kHz max
In-band ripple 1.0dB max
Insertion loss 1.5dB max
Guaranteed attenuation -50dB max -910 ±10kHz
Termination 1200Ω // 3.0pF
Number of units 1
Package Drawing

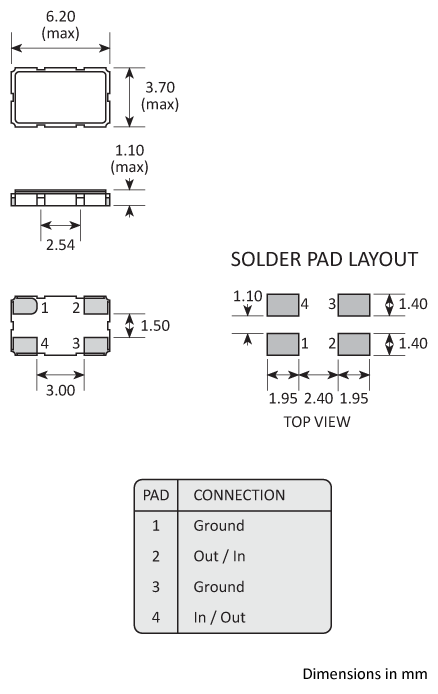

Package footprint and configuration drawing for a 6035 4-pad Golledge Crystal Filter showing full dimensions.
Ordering Information

To request a quotation for the GSF-61 21S12A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications
A:250 B:12.0 C:6.4 D:3.9 E:8 F:1.3 G:80 H:21
