Golledge 6x2mm cylinder SMD crystal package


SM Low Frequency Formed Lead Cylindrical Crystal

  • Low cost
  • Formed leads for SM
  • Industrial temperature range
  • Miniature size for high density applications
Configurable Options
ParameterOption Code
Calibration tolerance
Circuit condition
Quantity / Special Request

Please specify the quantity you require below.

The GSCX-26 is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GSCX-26 is a low frequency solution with miniature cylindrical formed lead package providing a very small footprint of just 2.0mm diameter.

The GSCX-26 is available at low frequencies from 30.0-165kHz, with industrial operating temperature range of -40 to +85°C, and at very low cost for high density applications.

Frequency range 30.0 ~ 165kHz
Dimensions ?2.0 x 6.1mm
Operating temperature range -40 to +85°C
Storage temperature range -55 to +125°C
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.034 ±0.006ppm/°C2 typ
Static capacitance (C0) 0.8 ~ 1.7pF
Motional capacitance (C1) 1 ~ 4fF typ
Equivalent series resistance (max) 30 ~ 50kΩ
Ageing ±5ppm max first year
Drive level 1.0µW max
Soldering condition 240°C, 10 sec max

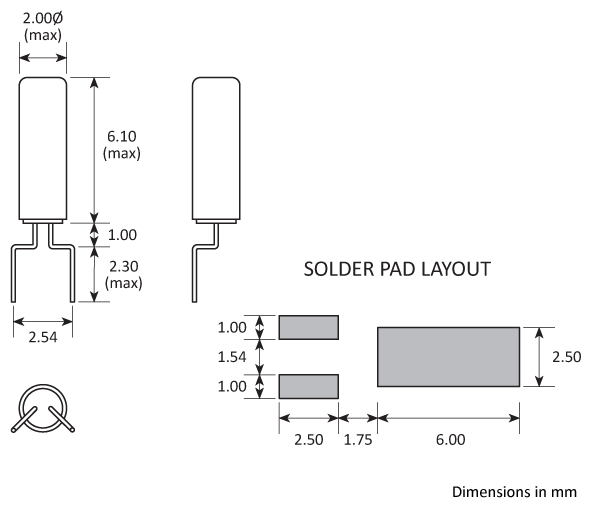

Package Drawing
Package footprint drawing for the Golledge 2x6 SMD cylinder package
Ordering Information

To request a quotation for the GSCX-26 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD-HBM-1A Human Body Model (HBM) 1A (250V to <500V)

MSL1 Moisture Sensitivity Level (MSL): 1 (or not applicable)


Press seal cylinder

Material Composition

PbFree Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions RoHS 2 compliant with no exemptions. See our declaration

REACH REACH compliant. See our statement

Conflict Minerals Statement Free of conflict minerals. See our declaration

Halogen Free Statement Free of Halogens. See our declaration

Ozone Depletion Statement Free of Ozone-depleting substances. See our declaration
