Automotive Crystal (AEC-Q200)

  • AEC-Q200 qualified for automotive applications
  • Vacuum seal for excellent long-term stability
  • High reliability at low cost
  • Metal lid can be grounded to minimise EMI
Configurable Options
ParameterOption Code
Calibration tolerance
Temperature stability
Operating temperature range
Circuit condition
Oscillation mode
Quantity / Special Request

Please specify the quantity you require below.

The GRX-330 is supplied on tape and reel. 3k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

If you're searching for a miniature AEC-Q200 qualified crystal for pairing with your automotive project then GRX-330 presents an ideal solution. Encased within a miniature 3.2x2.5mm ceramic package with seam sealed metal lid for durability, the GRX-330 is our most popular component within our specialist GRX automotive-qualified range of crystals.

All GRX crystals operate in fundamental mode for maximum performance, and the GRX-330 is available with tight stabilities of up to ±10ppm or even tighter if requested. With a wide range of circuit conditions available the GRX-330 is flexible enough to meet the needs of your design, not force your design to meet its needs, and it also features excellent aging of only ±3ppm in the first year of performance, ensuring design longevity.

All GRX products come fully AEC-Q200 tested and qualified as standard and full PPAP documentation is available on request. If you're looking for more products suitable for automotive designs please check out our automotive industry page here for more ideas.

Frequency range 12.0 ~ 40.0MHz
Dimensions 3.2 x 2.5 x 0.8mm
Storage temperature range -40 to +125°C
Static capacitance (C0) 5pF max
Equivalent series resistance 100Ω max (12.0 ~ 15.99MHz)
80Ω max (16.0 ~ 18.99MHz)
60Ω max (19.0 ~ 29.99MHz)
40Ω max (30.0 ~ 40.0MHz)
Ageing ±3ppm max first year
Test drive level 10µW typ, 100µW max
Soldering condition 260°C, 10 sec x2 max
Qualification AEC-Q200 (Automotive)
Net mass 16.0mg
Package Drawing

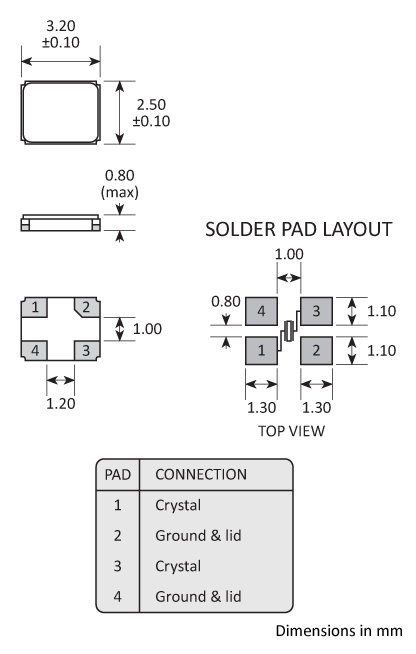

Package footprint and pad configuration drawing for the Golledge 3.2x2.5mm Crystal showing full dimensions.
Ordering Information

To request a quotation for the GRX-330 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

CAD Models

Our GRX-330 is included in the following design libraries. Click to download the library of your choice.

  • Vehicle telematics
  • Connected car
  • Remote keyless entry (RKE)
  • Audio - DAB/Bluetooth
  • Camera
Soldering Profile

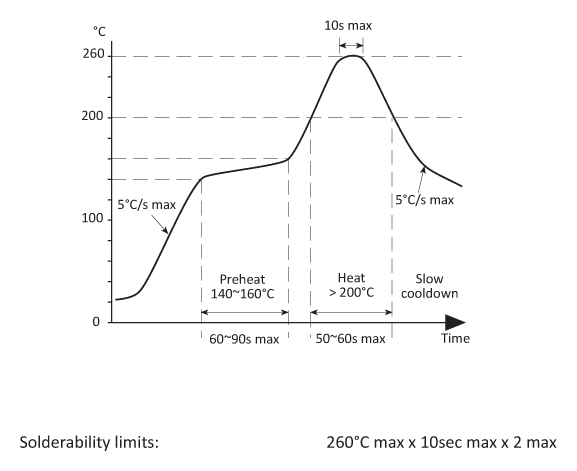

Solder reflow profile
Tape & Reel Specification

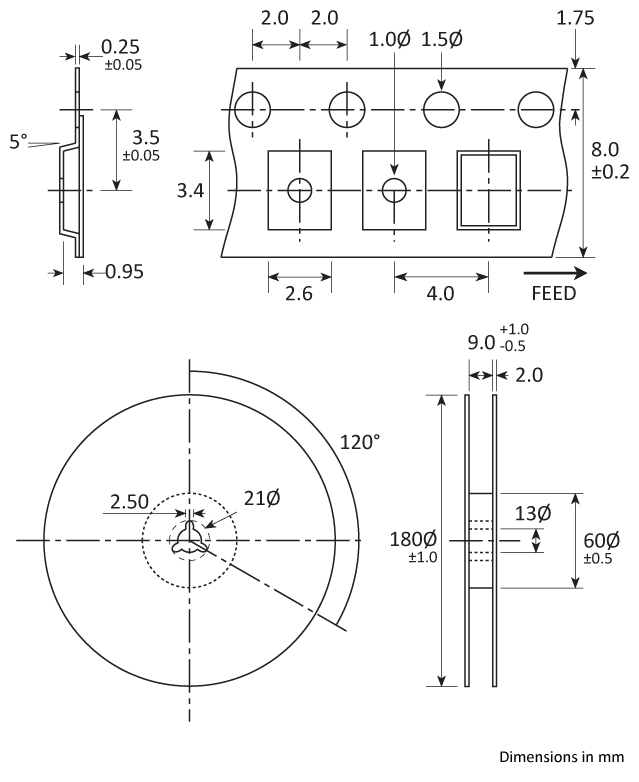

Tape and Reel specifications
