GMCF-10 10G30D 10.7MHz 8 pole crystal filter with 30.0kHz 6dB bandwidth
- Comprehensive stocks
- Custom specifications available

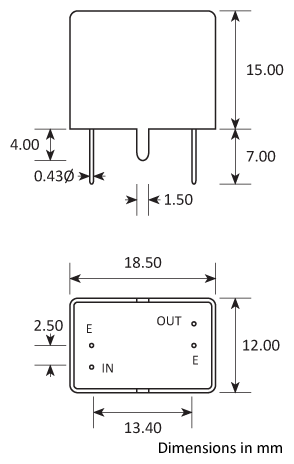

18.5 x 12.0 x 15.0mm
|Operating temperature range||
-20 to +70°C
|Number of poles||
-6dB @ ±15.0kHz min
-80dB @ ±40.0kHz max
-80dB max ±40.0 ~ ±300kHz
5000Ω // -1.0pF
To request a quotation for the GMCF-10 10G30D please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at firstname.lastname@example.org.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions. See our declaration
REACH compliant. See our statement
Free of conflict minerals. See our declaration
Free of Halogens. See our declaration
Free of Ozone-depleting substances. See our declaration
