GMCF-10 10G15D 10.7MHz 8 pole crystal filter with 15.0kHz 6dB bandwidth
- Comprehensive stocks
- Custom specifications available

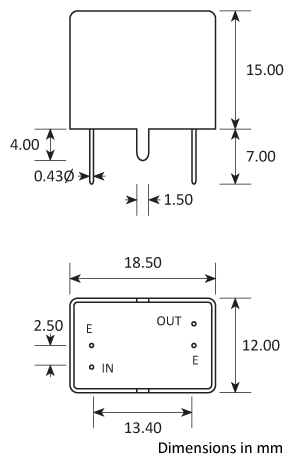

18.5 x 12.0 x 15.0mm
|Operating temperature range||
-20 to +70°C
|Number of poles||
-6dB @ ±7.5kHz min
-90dB @ ±25.0kHz max
-90dB max ±25.0 ~ ±300kHz
3300Ω // 1.5pF
To request a quotation for the GMCF-10 10G15D please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at email@example.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
